Sloan 3080053
REGAL 111XL,1.6 W/C FL/VL,AD
SKU
135896

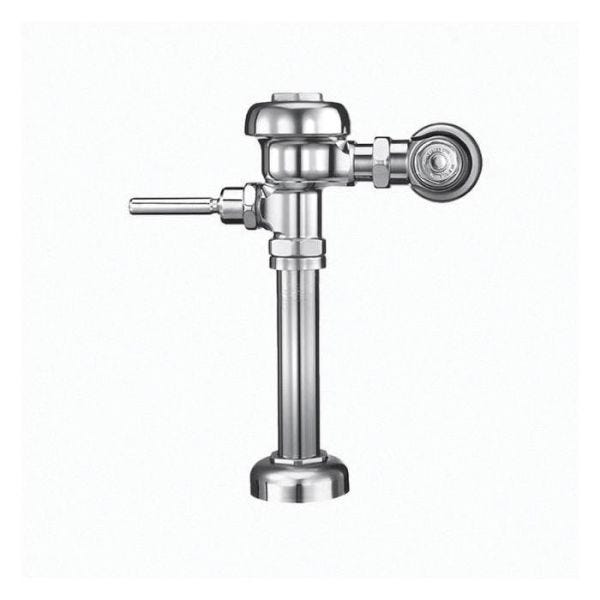

Sloan®, 3080053, Manual Exposed Flushometer, Single-Flush, Series: 111, Regal® Collection, Water Closet Fixture, 1.6 gpf Flush, 1 in IPS Inlet, 1-1/2 in Spud Coupling, 11-1/2 in Rough-In, Diaphragm Valve Design, Connection Location: Top Spud, Non-Hold Open Handle, Semi-Red Brass, Polished Chrome, Domestic
- Flush volumes start as low as 1.6 gpf/6.0 Lpf to meet water-efficiency objectives
- Water conservation is aided by the ADA-compliant, non-hold-open handle, which prevents toilet from exceeding intended flush volume
- Low consumption flush accuracy controlled by Para-Flo™ technology
- Integrity of the product is maintained with control stop plug
- Durability is facilitated with high copper, low zinc brass castings for dezincification resistance
- Adjustable tailpiece
- Valve body, cover, tailpiece and control stop shall be in compliance with ASTM alloy classification for red brass
| Flush Rate | 1.6 gpf |
|---|---|
| Domestic/Import | Domestic |
| Inlet Size | 1 in IPS |
| Collection | Regal® |
| Valve Design | Diaphragm |
| Type | Single-Flush |
| Spud Coupling | 1-1/2 in |
| Connection Location | Top Spud |
| Series | 111 |
| Material | Semi-Red Brass |
| Handle Type | Non-Hold Open |
| Rough-In Size | 11-1/2 in |
| Fixture Type | Water Closet |
| Finish/Color | Polished Chrome |
| Brand | Sloan |
