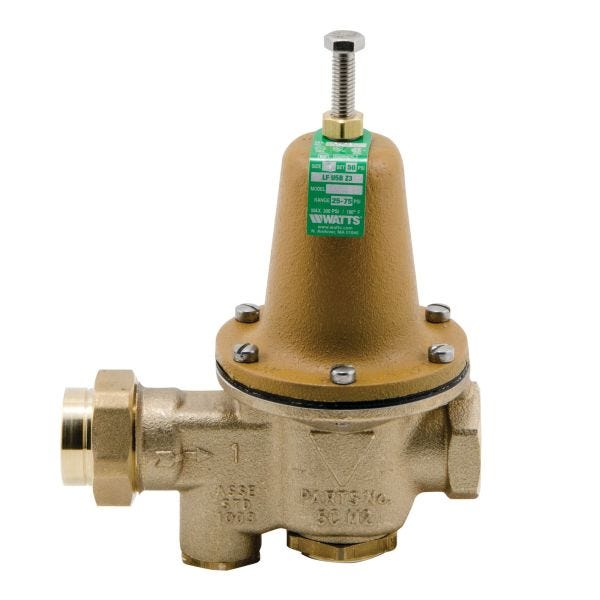

WATTS 0009118
LFU5B 3/4" PRESS REGULATOR
SKU
597562
WATTS®, 0009118, Pressure Reducing Valve, High Performance, Series: LFU5B-Z3, 3/4 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 6-3/16 in Inlet to Outlet Length, 6-7/8 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm Softgoods, Domestic
- Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
- Integral stainless steel strainer
- Replaceable seat module
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- 25 to 75 psi adjustable reduced pressure range
- 50 psi (345 kPa) standard pressure setting
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Inlet to Outlet Length | 6-3/16 in |
|---|---|
| Nominal Size | 3/4 in |
| Top to Inlet Center | 6-7/8 in |
| Series | LFU5B-Z3 |
| Body Material | Cast Copper Silicon Alloy |
| Softgoods Material | Reinforced EPDM Diaphragm |
| Temperature Rating | 33 to 160 deg F |
| Pressure Range | 25 to 75 psi |
| Media | Water |
| Domestic/Import | Domestic |
| Type | High Performance |
| End Style | FNPT |
| Brand | Watts |
