WATTS 0009195
LF 11/2U5B-Z3-GG PRV
SKU
558442

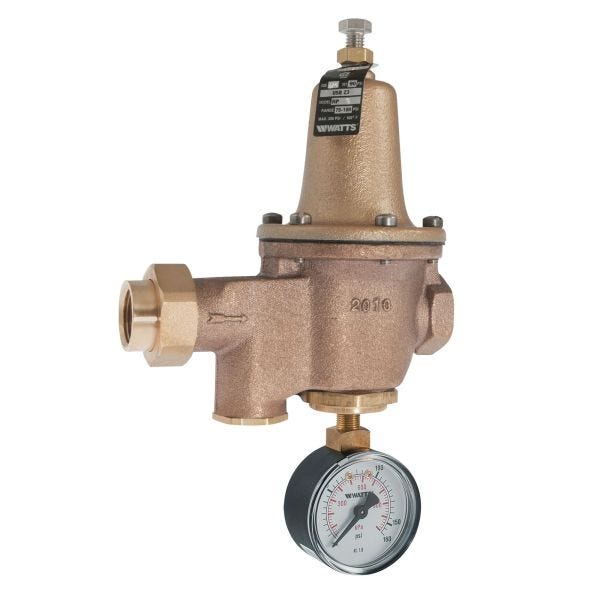

WATTS®, 0009195, Pressure Reducing Valve, High Performance Standard Capacity, Series: LFU5B-Z3, 1-1/2 in Nominal, FNPT Union Inlet x FNPT Outlet End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, Copper Silicon Alloy Body, EPDM Diaphragm Softgoods, 9-3/8 in H Dimensions, Domestic
- Replaceable seat module
- Integral stainless steel strainer removable for cleaning
- Serviceable in line without special tools
- Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- A water saving test program concluded that reducing the supply pressure from 80 to 50 psi resulted in a water savings of 30%
- The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
- GG: Gauge tapping and 160 psi gauge
- 50 psi standard reduced pressure
- 25 to 75 psi adjustable reduced pressure range
- FNPT with built in thermal expansion bypass
| Nominal Size | 1-1/2 in |
|---|---|
| Series | LFU5B-GG-Z3 |
| Body Material | Copper Silicon Alloy |
| Softgoods Material | EPDM Diaphragm |
| Temperature Rating | 33 to 160 deg F |
| Pressure Range | 25 to 75 psi |
| Media | Water |
| Domestic/Import | Domestic |
| Dimensions | 9-3/8 in H |
| Type | High Performance Standard Capacity |
| End Style | FNPT Union Inlet x FNPT Outlet |
| Brand | Watts |
