WATTS 0009257
LF 3/4 25AUB-Z3 PRV
SKU
543438

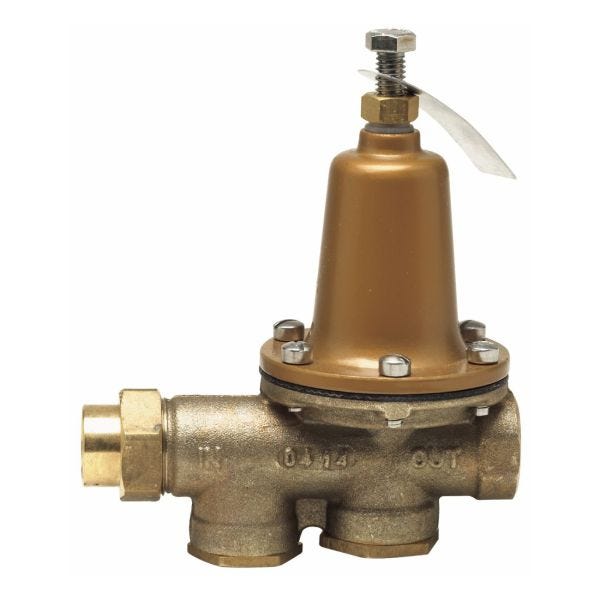

WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3, 3/4 in Nominal, FNPT Union x FNPT, 25 to 75 psi, 33 to 160 deg F, Media: Water, 5-5/16 in Inlet to Outlet Length, 7 in Top to Inlet Center, Cast Copper Silicon Alloy Body, Reinforced EPDM Diaphragm/Polymer Seat, Import
- Integral stainless steel strainer removable for cleaning
- Standard construction includes Z3 sealed spring cage and stainless steel corrosion resistant adjusting and cage screws for accessible outdoor or pit installations
- Union inlet connection
- Replaceable seat module
- Serviceable in line
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- 50 psi (345 kPa) standard pressure setting
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Inlet to Outlet Length | 5-5/16 in |
|---|---|
| Nominal Size | 3/4 in |
| Top to Inlet Center | 7 in |
| Series | LF25AUB-Z3 |
| Body Material | Cast Copper Silicon Alloy |
| Softgoods Material | Reinforced EPDM Diaphragm/Polymer Seat |
| Temperature Rating | 33 to 160 deg F |
| Pressure Range | 25 to 75 psi |
| Media | Water |
| Domestic/Import | Import |
| End Style | FNPT Union x FNPT |
| Brand | Watts |
