WATTS 0009275
WATTS LF25AUB W/GG OPTION
SKU
640541

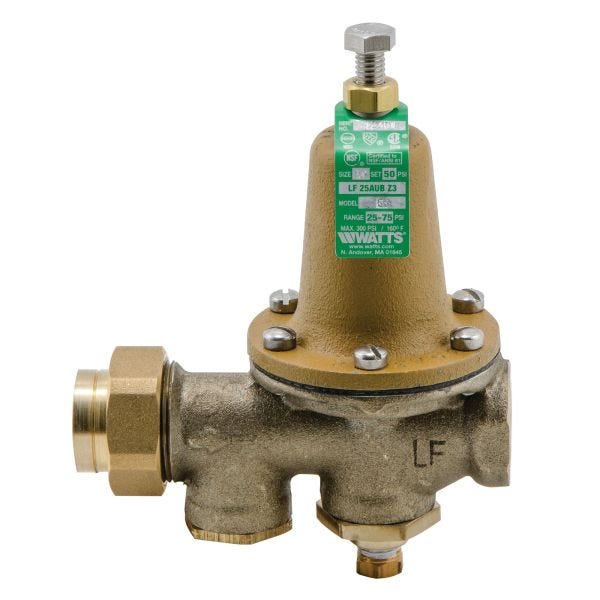

WATTS®, 0009275, Pressure Reducing Valve, Standard Capacity, Series: LF25AUB-Z3, 3/4 in Nominal, FNPT Union x FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, Copper Silicon Alloy Body, EPDM Diaphragm Softgoods, 7 in H Dimensions, Domestic
- Serviceable in line
- A water saving test program concluded that reducing the supply pressure from 80 to 50 psi resulted in a water savings of 30%
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- Industry-trusted design with proven track record for longevity, reliability and flow performance
- The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
- GG: Gauge tapping and 160 psi gauge
- Sealed spring cage with stainless steel cage screws
- 50 psi standard reduced pressure
| Trim Material | EPDM |
|---|---|
| Nominal Size | 3/4 in |
| Series | LF25AUB-Z3 |
| Body Material | Copper Silicon Alloy |
| Softgoods Material | EPDM Diaphragm |
| Temperature Rating | 33 to 160 deg F |
| Pressure Range | 25 to 75 psi |
| Media | Water |
| Domestic/Import | Domestic |
| Dimensions | 7 in H |
| Type | Standard Capacity |
| End Style | FNPT Union x FNPT |
| Brand | Watts |
