WATTS 0009866

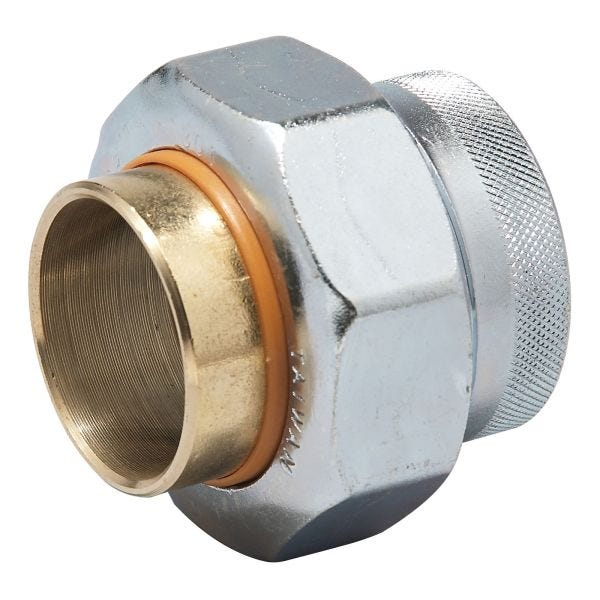

LF WATTS 1" DIELECTRIC UNION
SKU
599866
WATTS® Dielectric Union, 1 in Nominal, FNPT x Solder, 2-7/8 in Hex, 2-1/2 in Length, 250 psi, Brass, 180 deg F, Domestic
- Maximum pressure is 250 psi (17.2 bar)
- Maximum temperature 180 deg F (82 deg C)
- Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
- Female iron pipe thread to solder connection
- Designed and manufactured to the highest quality standards
- Steel adapter and nut
- Polysulfone insulator
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| End Style | FNPT x Solder |
|---|---|
| Pressure Rating | 250 psi |
| Length | 2-1/2 in |
| Hex Size | 2-7/8 in |
| Temperature Rating | 180 deg F |
| Nominal Size | 1 in |
| Series | LF3001A |
| Domestic/Import | Domestic |
| Material | Brass |
| Brand | Watts |
| Type | Dielectric Unions |
| Connection | CXFIP |
| Size | 1" |
