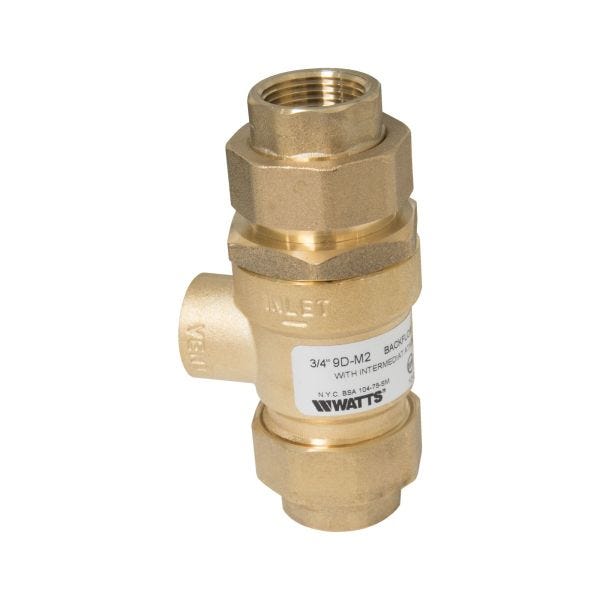

WATTS 0061888
9D 3/4 BACKFLOW PREVENTOR
SKU
24210
WATTS® Backflow Preventer, Series: 9D Series, 3/4 in Nominal, Union FNPT x Union Joint, 175 psi, 250 deg F, Dual Check Backflow, Media: Water, Forged Brass Body, 4-1/2 in W x 2-9/16 in H, Domestic
- Compact design
- Forged brass body for durability
- True line-sized construction allows the check modules to open further allowing dirt and debris to pass more freely reducing check fouling
- Stainless steel internal parts
- Maximum flow at low pressure drop
- Furnished with union connections to facilitate removal and replacement for maintenance
- Compact for economy combined with performance
- Design simplicity for easy maintenance
- Can be installed vertically or horizontally
- Durable, tight seating rubber check valve assemblies
| End Style | Union FNPT x Union Joint |
|---|---|
| Temperature Rating | 250 deg F |
| Domestic/Import | Domestic |
| Media | Water |
| Dimensions | 4-1/2 in W x 2-9/16 in H |
| Pressure Rating | 175 psi |
| Nominal Size | 3/4 in |
| Backflow Type | Dual Check |
| Series | 9D Series |
| Body Material | Forged Brass |
| Brand | Watts |
