WATTS 0065376
WATTS 2"LF919QT RPZ
SKU
651181

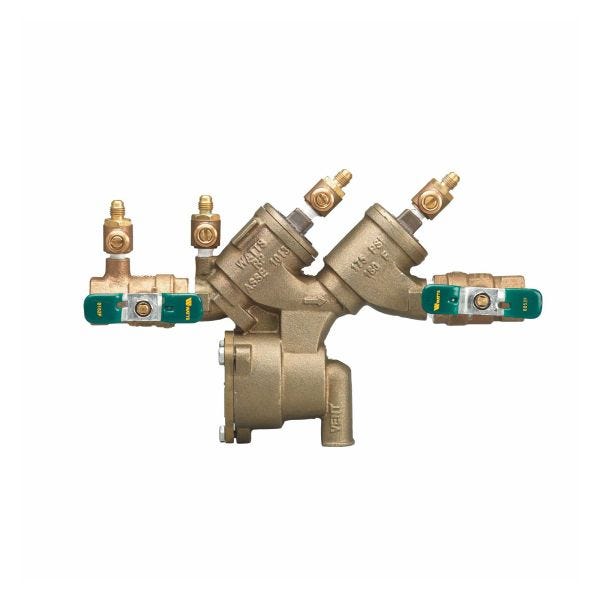

WATTS®, 0065376, Double Check Valve Assembly, Series: LF919, 2 in Nominal, NPT End Style, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Resilient Seated Ball Valve Ball Valve/Gate Valve, Reduced Pressure Zone Backflow, Full Port, Cast Copper Silicon Alloy Body, 21-1/16 in L x 12-1/16 in H Dimensions, Domestic
- Lead-free bronze body with NPT end connections
- Quarter-turn full port resilient seated ball valve shutoffs with lever handles
- No special tools are required for servicing
- Separate access covers for the check valves and relief valve for easy of maintenance
- Top entry all check internals easily accessible
- All rubber elastomers of chloramine resistant material
- Check valve poppet assemblies are fully guided by innovative plastic seat guide
- Replaceable push-in check valve and relief valve seat eliminates threads from the water way
- EZ twist relief valve cover with quarter-turn locking joint captures the spring load during repair to facilitate disassembly
- Innovative check valve plastic cover bushing provides trouble free guiding of the check valve poppet
- Bottom mounted relief valve provides reduced installation clearances
- Compact space saving design
- Top mounted test cocks for easy in testing and reduced installation clearances
- Shut-off valve with lever handles
| End Style | NPT |
|---|---|
| Temperature Rating | 33 to 180 deg F |
| Domestic/Import | Domestic |
| Ball Valve/Gate Valve Type | Quarter-Turn Resilient Seated Ball Valve |
| Dimensions | 21-1/16 in L x 12-1/16 in H |
| Port Type | Full |
| Pressure Rating | 175 psi |
| Nominal Size | 2 in |
| Backflow Type | Reduced Pressure Zone |
| Series | LF919 |
| Body Material | Cast Copper Silicon Alloy |
| Brand | Watts |
