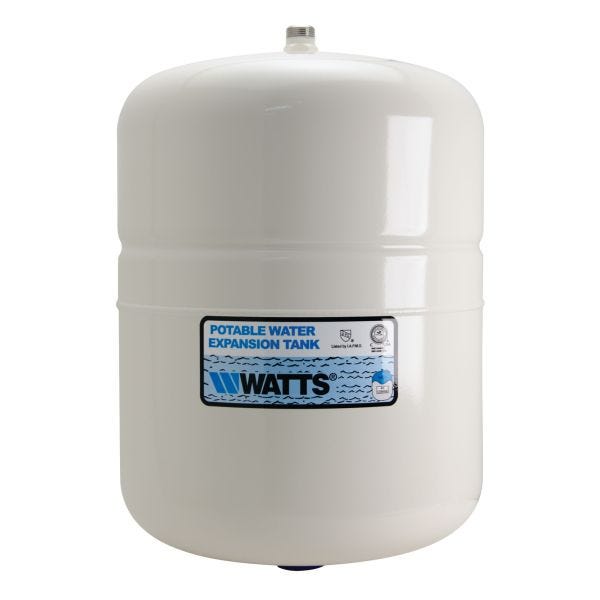

WATTS 0067372
PLT-20 8.5GL POTABLE EXP TANK
SKU
436461
WATTS® Water Expansion Tank, Potable, Series: PLT, 8.5 gal Tan, 7.102 gal Acceptance Volume, 150 psi, ASME Yes/No: No, 12-1/2 in Dia, 19.2 in Height, Drawn Steel, 20 psi Pre-Pressure Rating, 200 deg F Maximum Temperature, MNPT, 3/4 in, Import
- Air pre-charge at 20 psi
- 3/4 in male connection
- Prevents over-pressure caused by thermal expansion
- Lead free
- Rugged flexible butyl diaphragm
- Field adjustable pre-charge
- Can be used with most standard hot water heaters and storage tanks
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Series | PLT |
|---|---|
| Pressure Rating | 150 psi |
| Domestic/Import | Import |
| Height | 19.2 in |
| Pre-Pressure Rating | 20 psi |
| Maximum Temperature | 200 deg F |
| Material | Drawn Steel |
| Acceptance Volume | 7.102 gal |
| Connection Type | MNPT |
| Tank Volume | 8.5 gal |
| ASME Yes/No | No |
| Type | Potable |
| Diameter | 12-1/2 in |
| Connection Size | 3/4 in |
| Brand | Watts |
