WATTS 0067451
3/4 STEAM,HOT WATER RAD VAL
SKU
108577

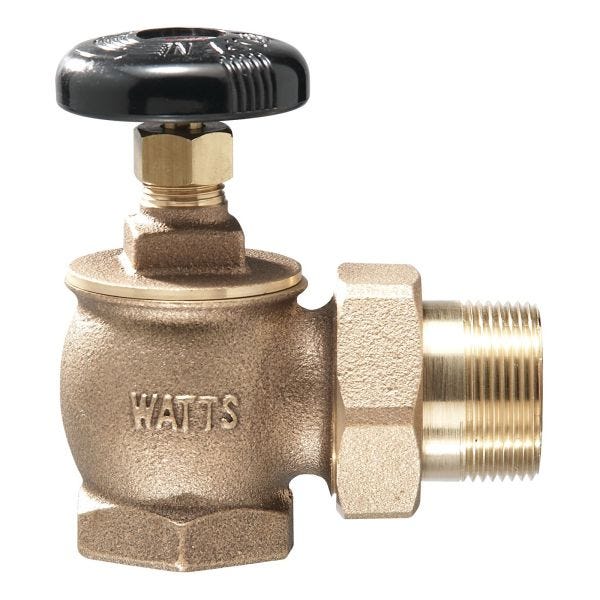

WATTS® Radiator Angle Valve, 3/4 in Nominal, FNPT x Male Union End Style, 60 psi Pressure, Media: Steam, Handwheel Actuator, 2-9/16 in Inlet to Outlet Length, 3-3/16 in Top to Inlet Center, Bronze Body, Brass Trim, Rubber Disc Softgoods, Import
- Bronze body
- Angle pattern
- FIP x male union connections
- Constructed of heavy-duty bronze
- Rising Stem
- Renewable composition disc
- Working pressure non-shock
- 15 psi saturated steam
- Plastic handwheel
- Brass packing and disc nut
- Aluminum name plate
- Brass swivel and retainer
- For hydronic heating systems
| Pressure Rating | 60 psi |
|---|---|
| Media | Steam |
| Series | RA-1-AP |
| End Style | FNPT x Male Union |
| Trim Material | Brass |
| Body Material | Bronze |
| Actuator Type | Handwheel |
| Nominal Size | 3/4 in |
| Inlet to Outlet Length | 2-9/16 in |
| Domestic/Import | Import |
| Top to Inlet Center | 3-3/16 in |
| Softgoods Material | Rubber Disc |
| Brand | Watts |
