WATTS 0111514
"WATTS 757 8DBL CK,W/OS&Y VLVS"
SKU
400933

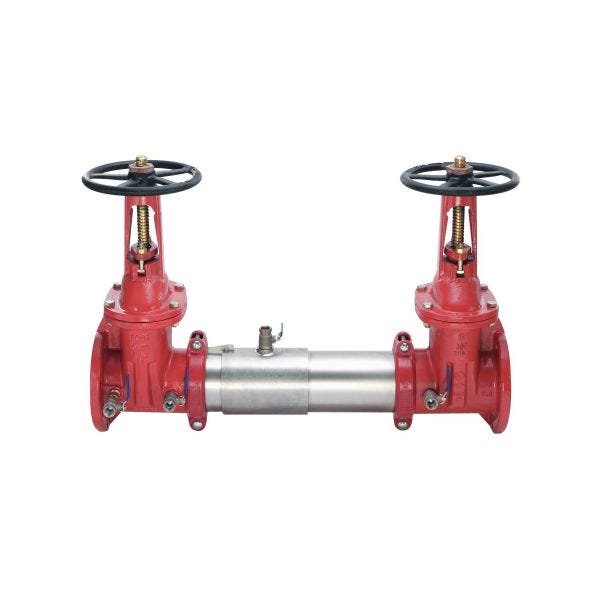

WATTS®, 0111514, Double Check Valve Assembly, Series: 757, 8 in Nominal, 175 psi Pressure, 33 to 140 deg F, Resilient Seated Gate Valve Ball Valve/Gate Valve, 304 Stainless Steel Body, 49-3/4 in L x 17-3/16 in W Dimensions, Domestic
- Tri-link check valve are removable and serviceable without the use of any special tool
- Extremely compact design
- 70% lighter than traditional designs
- 304 (SCH 40/STD) stainless steel housing and sleeve
- Groove fittings allow integral pipeline adjustment
- Patented tri-link check provides lowest pressure loss
- Unmatched easy of serviceability
- Replaceable check disc rubber
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- UL/FM outside stem and yoke resilient seated gate valve
| Temperature Rating | 33 to 140 deg F |
|---|---|
| Domestic/Import | Domestic |
| Ball Valve/Gate Valve Type | Resilient Seated Gate Valve |
| Dimensions | 49-3/4 in L x 17-3/16 in W |
| Pressure Rating | 175 psi |
| Nominal Size | 8 in |
| Series | 757 |
| Body Material | 304 Stainless Steel |
| Brand | Watts |
