WATTS 0114039
WATTS 1/2" PRESS RED VAL
SKU
640623

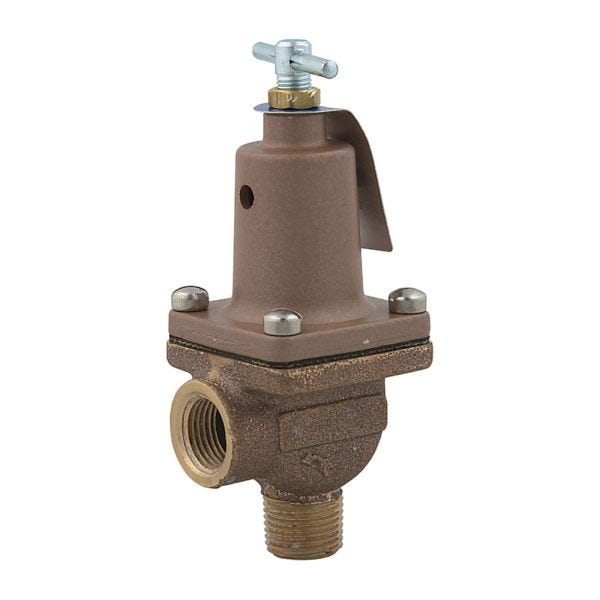

WATTS® By-Pass Control Relief Valve, Series: BP30, 1/2 in Nominal, MNPT x FNPT End Style, 10 to 175 psi Pressure, 180 deg F, T-Handle Actuator, Bronze Body, 2-1/4 in L x 5-3/4 in H Dimensions, Domestic/Import: Domestic
- Spring loaded
- Bronze body
- Soft seated
- Automatic reseating
- 10 psi pressure relief setting
- Sensitive rubber diaphragm
- Spring and adjustment handle separated from liquid elements
| Nominal Size | 1/2 in |
|---|---|
| Actuator Type | T-Handle |
| Series | BP30 |
| Body Material | Bronze |
| Temperature Rating | 180 deg F |
| Domestic/Import | Domestic |
| Pressure Rating | 10 to 175 psi |
| Dimensions | 2-1/4 in L x 5-3/4 in H |
| End Style | MNPT x FNPT |
| Brand | Watts |
