WATTS 0122612
LF 2-1/2 EPXY CTD RPZ W/NRS
SKU
565808

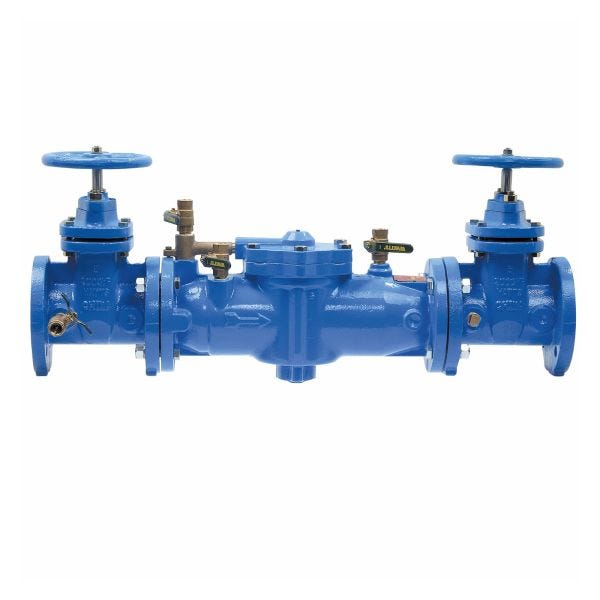

WATTS®, 0122612, Reduced Pressure Zone Assembly, Series: LF009, 2-1/2 in Nominal, 175 psi Pressure, 110 deg F, Resilient Seated Gate Valve Ball Valve/Gate Valve, Full Port, Cast Iron Body, Epoxy Coated, Domestic
- Utilize advanced ArmorTek coating technology to resist corrosion of internal
- The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
- Single access cover and modular check construction for easy of maintenance
- Top entry all internals immediately accessible
- Captured spring assemblies for safety
- Internal relief valve for reduced installation clearances
- Replaceable seats for economical repair
- Large body passages provides low pressure drop
- Compact space saving design
- Non-rising stem resilient seated gate valve
| Temperature Rating | 110 deg F |
|---|---|
| Domestic/Import | Domestic |
| Ball Valve/Gate Valve Type | Resilient Seated Gate Valve |
| Finish | Epoxy Coated |
| Port Type | Full |
| Pressure Rating | 175 psi |
| Nominal Size | 2-1/2 in |
| Series | LF009 |
| Body Material | Cast Iron |
| Brand | Watts |
