Watts Water Technologies 0122653
WATTS 3" LF 009-QT
SKU
731184

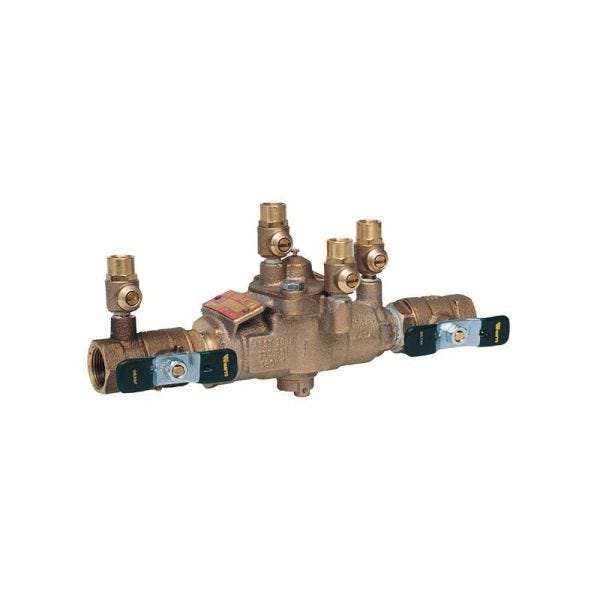

WATTS® Reduced Pressure Zone Assembly, Inline Pattern, Series: LF009, 3 in Nominal, FNPT, 175 psi, 110 deg F, Quarter-Turn Ball Valve, Reduced Pressure Zone Backflow, Full Port, Media: Potable Water, Cast Iron Body, Epoxy Coated
- Utilize advanced ArmorTek coating technology to resist corrosion of internal
- The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
- Compact space saving design
- Epoxy coated cast iron body furnished with an FDA epoxy coated strainer
- Single access cover and modular check construction for the ease of maintenance
- Epoxy coated quarter turn ball valves
| End Style | FNPT |
|---|---|
| Temperature Rating | 110 deg F |
| Ball Valve/Gate Valve Type | Quarter-Turn Ball Valve |
| Media | Potable Water |
| Finish | Epoxy Coated |
| Port Type | Full |
| Pressure Rating | 175 psi |
| Nominal Size | 3 in |
| Type | Inline Pattern |
| Backflow Type | Reduced Pressure Zone |
| Series | LF009 |
| Body Material | Cast Iron |
| Brand | Watts |
