WATTS 0122688
LF009M2-QT-S 1 1/4"
SKU
895251

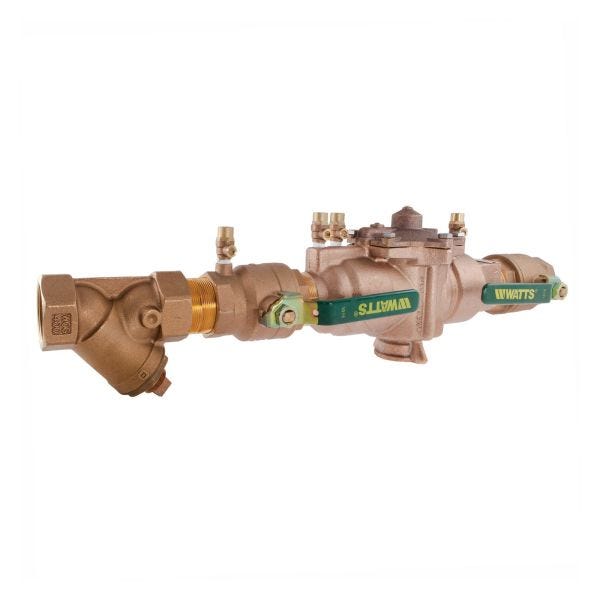

WATTS®, 0122688, Reduced Pressure Zone Assembly, Series: LF009, 1-1/4 in Nominal, NPT End Style, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Full Port, Cast Copper Silicon Alloy Body, 17-3/8 in L Dimensions, Domestic
- Lead-free bronze body construction for durability
- Quarter-turn full port resilient seated ball valve shutoffs
- Single access cover and modular check construction for easy of maintenance
- Top entry all internals immediately accessible
- Captured spring assemblies for safety
- Internal relief valve for reduced installation clearances
- Replaceable seats for economical repair
- Large body passages provides low pressure drop
- Compact space saving design
- Cast copper silicon alloy body construction for durability
| End Style | NPT |
|---|---|
| Temperature Rating | 33 to 180 deg F |
| Domestic/Import | Domestic |
| Ball Valve/Gate Valve Type | Quarter-Turn Ball Valve |
| Dimensions | 17-3/8 in L |
| Port Type | Full |
| Pressure Rating | 175 psi |
| Nominal Size | 1-1/4 in |
| Series | LF009 |
| Body Material | Cast Copper Silicon Alloy |
| Brand | Watts |
