WATTS 0122767
LF 2 909M1-QT-S-FS RPZ W/ STR
SKU
571784

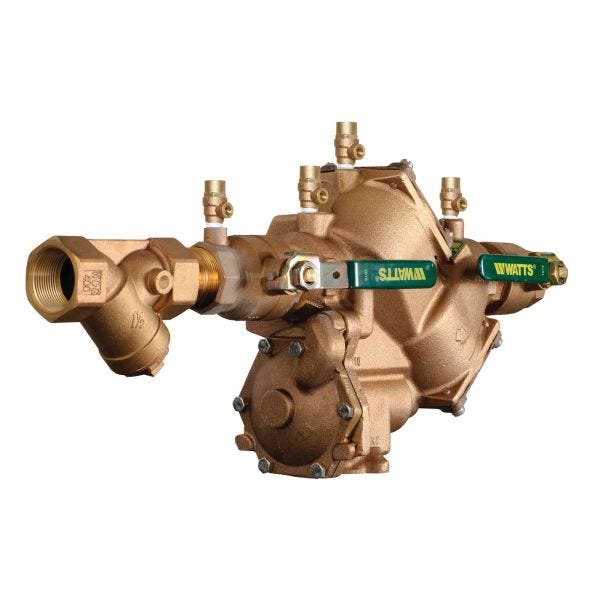

WATTS®, 0122767, Reduced Pressure Zone Assembly, Series: LF909, 2 in Nominal, MNPT End Style, 175 psi Pressure, 33 to 110 deg F, Full Port, Cast Copper Silicon Alloy Body, 5-1/4 in W Dimensions, Domestic
- Unique patented air-in and water-out design provides high capacity relief valve discharge performance during emergency condition
- Quarter-turn ball valves with lever handles
- Modular compact design
- Replaceable seats
- Compact for easy of installation
- Horizontal or vertical (up or down) installation on limited sizes only
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| End Style | MNPT |
|---|---|
| Temperature Rating | 33 to 110 deg F |
| Domestic/Import | Domestic |
| Dimensions | 5-1/4 in W |
| Port Type | Full |
| Pressure Rating | 175 psi |
| Nominal Size | 2 in |
| Series | LF909 |
| Body Material | Cast Copper Silicon Alloy |
| Brand | Watts |
