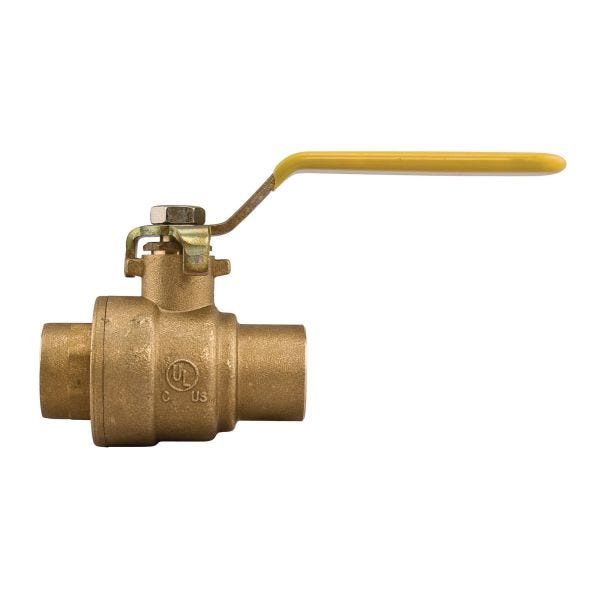

WATTS 0123471
LF 11/4 FBVS-3C SS CC BALL VAL
SKU
596423
WATTS®, 0123471, Ball Valve, 2-Piece, Series: LFFBVS-3C-SS, 1-1/4 in Nominal, Solder End Style, 600 psi WOG Pressure, -40 to 400 deg F, Full Port, 1-1/4 in Orifice, 316 Stainless Steel Ball, 3-7/8 in Inlet to Outlet Length, 2-5/8 in Top to Inlet Center, Brass Body, 316 Stainless Steel Stem and PTFE Seat Trim, PTFE Softgoods, Import
- Suitable for a full range of liquids and gases
- Minimal pressure drop due to full size ports
- Bottom loaded, blow-out proof stem
- Quarter-turn open or close operation
- Low operating torque
- 150 psi steam working pressure
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- PTFE stem packing seal/thrust washer
| Softgoods Material | PTFE |
|---|---|
| Port Type | Full |
| End Style | Solder |
| Ball Material | 316 Stainless Steel |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3-7/8 in |
| Top to Inlet Center | 2-5/8 in |
| Type | 2-Piece |
| Pressure Rating | 600 psi WOG |
| Orifice Size | 1-1/4 in |
| Body Material | Brass |
| Nominal Size | 1-1/4 in |
| Temperature Rating | -40 to 400 deg F |
| Series | LFFBVS-3C-SS |
| Trim Material | 316 Stainless Steel Stem and PTFE Seat |
| Brand | Watts |
| Use | Sweat |
| Type | Ball Valve |
| Size | 1 1/4" |
