WATTS 0123626
WATTS 3/4" IPS FP BV W/WASTE
SKU
610722

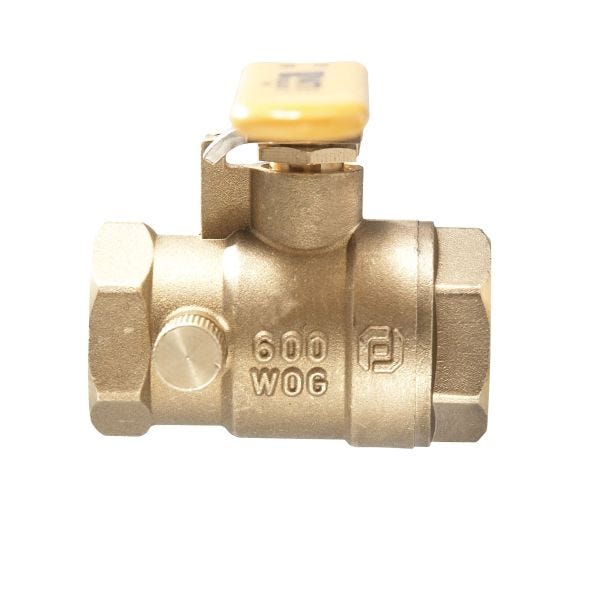

WATTS® Ball Valve, 2-Piece, 3/4 in Nominal, NPT End Style, 600 psi Pressure, 0 to 350 deg F, Full Port, Media: Gas/Liquids, Copper Silicon Alloy Ball, 2-7/16 in Inlet to Outlet Length, 2 in Top to Inlet Center, Brass Body, Brass Stem Trim, PTFE/NBR Softgoods, Import
- Lead free brass body construction
- Chrome plated lead free brass ball
- Adjustable packing design
- Drain port allows draining or venting of downstream line when valve is in the off position
- Virgin PTFE valve seats are standard
- Ball is wiped clean during each operation of the valve
- Blow-out proof, pressure retaining stem
- Vinyl insulator on heavy duty handles
- Fast, quarter-turn open or close operation
- Low operating torque
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- PTFE stem packing thrust washer and NBR seal
| Softgoods Material | PTFE/NBR |
|---|---|
| Port Type | Full |
| End Style | NPT |
| Media | Gas/Liquids |
| Ball Material | Copper Silicon Alloy |
| Domestic/Import | Import |
| Inlet to Outlet Length | 2-7/16 in |
| Top to Inlet Center | 2 in |
| Type | 2-Piece |
| Pressure Rating | 600 psi |
| Body Material | Brass |
| Nominal Size | 3/4 in |
| Temperature Rating | 0 to 350 deg F |
| Series | LFIT6300 |
| Trim Material | Brass Stem |
| Brand | Watts |
| Use | Threaded |
| Type | Ball Valve |
| Size | 3/4" |
