WATTS 0125084
LF 21/2PXP FBV-3 BV 2PC XLC
SKU
605345

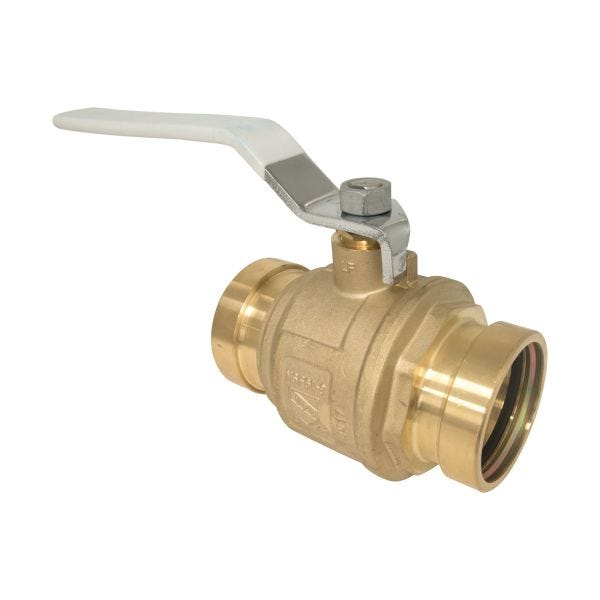

WATTS® Ball Valve, 2-Piece, Series: LFFBV-3-Press-XLC, 2-1/2 in Nominal, Press, 200 psi WOG, 32 to 250 deg F, Full Port, Media: Water, 3-1/8 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 3-3/8 in Top to Inlet Center, Copper Silicon Alloy Brass Body, Brass/Virgin® PTFE Trim, Virgin® PTFE/EPDM/NBR, Import
- Bottom loaded blowout proof stem with stem o-ring seal
- Designed for types K, L and M hard copper tubing
- Virgin® PTFE stem packing/EPDM O-Ring/NBR O-Ring
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Brass stem shaft/Virgin® PTFE seat
| Softgoods Material | Virgin® PTFE/EPDM/NBR |
|---|---|
| Port Type | Full |
| End Style | Press |
| Media | Water |
| Ball Material | Chrome Plated Brass |
| Domestic/Import | Import |
| Top to Inlet Center | 3-3/8 in |
| Type | 2-Piece |
| Pressure Rating | 200 psi WOG |
| Orifice Size | 3-1/8 in |
| Body Material | Copper Silicon Alloy Brass |
| Nominal Size | 2-1/2 in |
| Temperature Rating | 32 to 250 deg F |
| Series | LFFBV-3-Press-XLC |
| Actuator Type | Lever Handle |
| Trim Material | Brass/Virgin® PTFE |
| Brand | Watts |
| Type | Ball Valve |
| Size | 2 1/2" |
