WATTS 0298620
3"LF N223F-M2 FLG IRON PRV VLV
SKU
580657

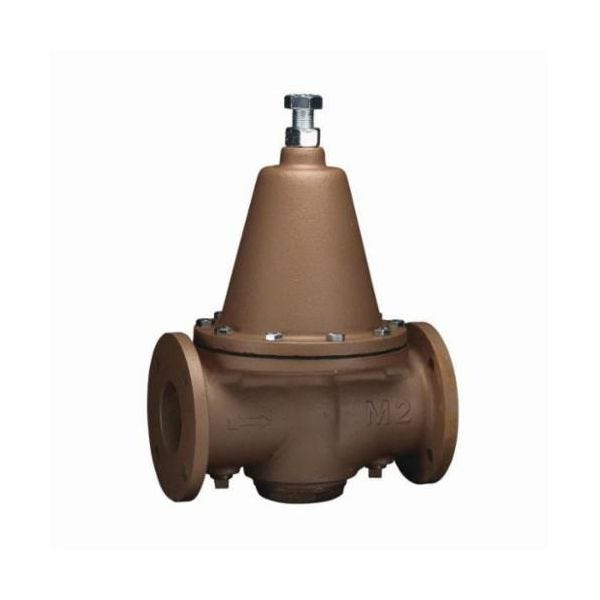

WATTS® Pressure Reducing Valve, Series: LF223, 3 in Nominal, Flanged, 25 to 75 psi, 125 lb, 33 to 160 deg F, Media: Water, 12-1/2 in Inlet to Outlet Length, 14-3/4 in Top to Inlet Center, Iron Body, Stainless Steel Seat/EPDM Disc, Domestic
- Lead free iron body construction
- Enlarged diaphragm, spring cage and seat orifice for super capacity performance
- Maximum working pressure 175 psi (12.1 bar)
- Serviceable in line
- Sensitive spring and large diaphragm for accurate pressure control
- High temperature resisting nylon reinforced diaphragm
- Sealed spring cage on all models for accessible outdoor or pit installations
- Iron coated with corrosion-resistant cold galvanizing body
- 25 to 75 psi adjustable reduced pressure range
- Replaceable stainless steel alloy seat
- EPDM valve disc
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Inlet to Outlet Length | 12-1/2 in |
|---|---|
| Nominal Size | 3 in |
| Top to Inlet Center | 14-3/4 in |
| Series | LF223 |
| Body Material | Iron |
| Softgoods Material | Stainless Steel Seat/EPDM Disc |
| Temperature Rating | 33 to 160 deg F |
| Pressure Range | 25 to 75 psi |
| Media | Water |
| Domestic/Import | Domestic |
| Pressure Class | 125 lb |
| End Style | Flanged |
| Brand | Watts |
