WATTS 88004111
LF 3/4 009M3QT-FS W/FLOOD SEN
SKU
525549

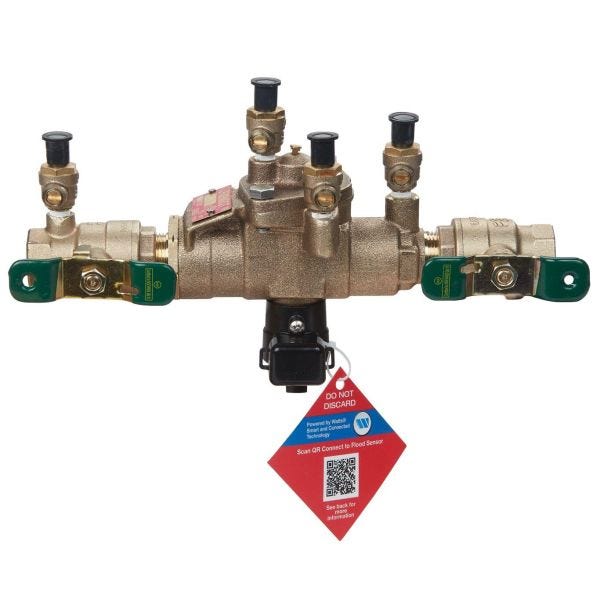

WATTS®, 88004111, Backflow Preventer, In-Line, Series: LF009-FS, 3/4 in Nominal, FNPT End Style, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Reduced Pressure Zone Backflow, Media: Water, Cast Copper Silicon Alloy, 10-3/4 in L x 6-1/4 in H Dimensions
- Lead free copper silicon alloy body
- Test cocks are screwdriver slotted
- Alert features available with add-on sensor connection kit
- Features an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
- Internal relief valve for reduced installation clearances
- Lead free bronze body construction for durability
- NPT inlet and outlet connections
- Quarter turn full port resilient seated ball valve shutoffs
- Replaceable seats for an economical repair
- Single access cover and modular check construction for the ease of maintenance
| End Style | FNPT |
|---|---|
| Temperature Rating | 33 to 180 deg F |
| Ball Valve/Gate Valve Type | Quarter-Turn Ball Valve |
| Media | Water |
| Finish | Cast Copper Silicon Alloy |
| Dimensions | 10-3/4 in L x 6-1/4 in H |
| Pressure Rating | 175 psi |
| Nominal Size | 3/4 in |
| Type | In-Line |
| Backflow Type | Reduced Pressure Zone |
| Series | LF009-FS |
| Body Material | Copper Silicon Alloy |
| Brand | Watts |
