Watts Water Technologies 0422022

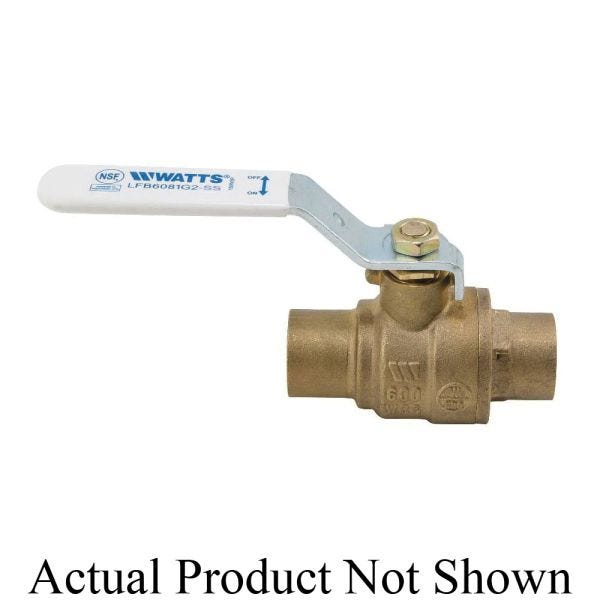

3" LFB6081G2-SS CXC BALL VLV
SKU
673881
WATTS® Ball Valve, 2-Piece, Series: LFB6081G2, 3 in Nominal, Socket, 400 psi WOG/125 psi WSP, 0 to 400 deg F, Full Port, Media: Liquid/Gas/Water, 7-3/4 in Orifice, T-Handle Actuator, 316 Stainless Steel Ball, 6-1/16 in Inlet to Outlet Length, 4-1/2 in Top to Inlet Center, Forged Bronze Body, 316 Stainless Steel/Virgin® PTFE Trim, Virgin® PTFE/FKM, Domestic
- Minimal pressure drop due to large ports
- Blowout proof, pressure retaining stem
- White handles for easy lead free identification
- 100% Factory tested in USA
- Virgin® PTFE adjustable stem packing gland/FKM O-Ring
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- 316 stainless steel stem shaft/Virgin® PTFE seat
| Softgoods Material | Virgin® PTFE/FKM |
|---|---|
| Port Type | Full |
| End Style | Socket |
| Media | Liquid/Gas/Water |
| Ball Material | 316 Stainless Steel |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 6-1/16 in |
| Top to Inlet Center | 4-1/2 in |
| Type | 2-Piece |
| Pressure Rating | 400 psi WOG/125 psi WSP |
| Orifice Size | 7-3/4 in |
| Body Material | Forged Bronze |
| Nominal Size | 3 in |
| Temperature Rating | 0 to 400 deg F |
| Series | LFB6081G2 |
| Actuator Type | T-Handle |
| Trim Material | 316 Stainless Steel/Virgin® PTFE |
| Brand | Watts |
| Use | Sweat |
| Type | Ball Valve |
| Size | 3" |
