WATTS 0555115
LF 2 FBVS-3C CC F/P BALL VLV
SKU
535224

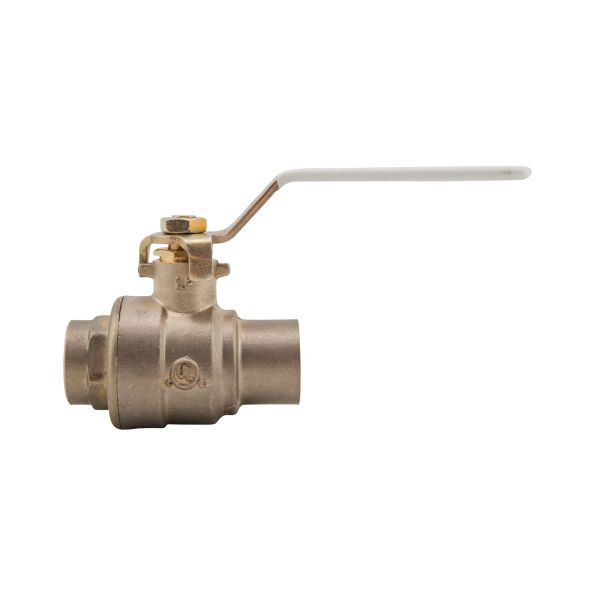

WATTS® Ball Valve, 2-Piece, 2 in Nominal, Solder End Style, 600 psi Pressure, -40 to 400 deg F, Full Port, Media: Gas/Liquids, Chrome Plated Brass Ball, 5-5/16 in Inlet to Outlet Length, 3-1/2 in Top to Inlet Center, Silicon Alloy Body, Brass Stem and PTFE Seat Trim, Fluorocarbon/PTFE Softgoods, Import
- Lead free construction
- Full port
- Solder end connection
- Lead free forged copper silicon alloy body and adapter
- Adjustable stem packing gland nut
- Bottom loaded, blow-out proof stem
- Machined chrome plated Lead free brass ball
- 150 psi steam working pressure
- Excessive heat can harm the seats
- After soldering, the packing nut may have to be tightened
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Fluorocarbon elastomer O-ring and PTFE stem packing seal/thrust washer
| Softgoods Material | Fluorocarbon/PTFE |
|---|---|
| Port Type | Full |
| End Style | Solder |
| Media | Gas/Liquids |
| Ball Material | Chrome Plated Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 5-5/16 in |
| Top to Inlet Center | 3-1/2 in |
| Type | 2-Piece |
| Pressure Rating | 600 psi |
| Body Material | Silicon Alloy |
| Nominal Size | 2 in |
| Temperature Rating | -40 to 400 deg F |
| Series | LFFBVS-3C |
| Trim Material | Brass Stem and PTFE Seat |
| Brand | Watts |
| Use | Sweat |
| Type | Ball Valve |
| Size | 2" |
