WATTS 0555221
WATTS 1"3WAY IPS WOG BALL VLV
SKU
612730

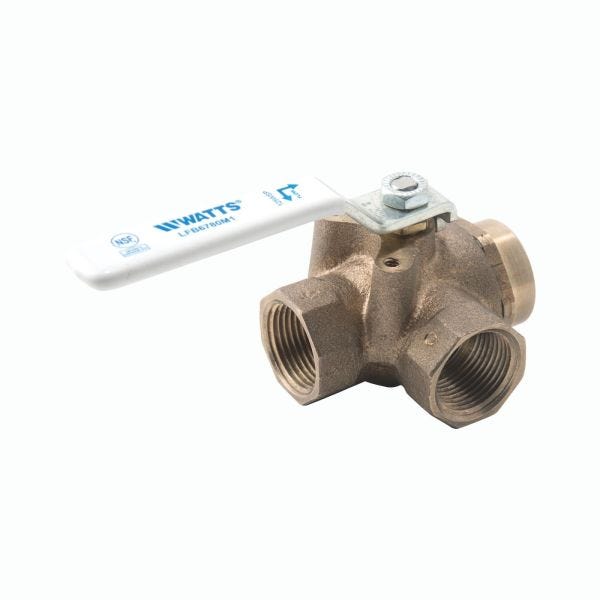

WATTS® Diverter Ball Valve, 2-Piece, Series: LFB6780M1, 1 in Nominal, FNPT End Style, 400 psi WOG Pressure, 0 to 350 deg F, 21 gpm Flow Rate, Full Port, Media: Gas/Liquids, 1 in Orifice, Lever Handle Actuator, Brass Ball, 3-9/16 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Bronze Body, Brass/PTFE Trim, PTFE Softgoods, Domestic
- 400 psi (28 bar) WOG non-shock at 100 deg F (38 deg C)
- Threaded NPT end connections
- Full port
- Blowout proof pressure retaining stem
- Minimal pressure drop due to full size ports
- Vinyl insulator on heavy duty zinc plated carbon steel handles
- Low operating torque
- Each valve factory tested
- Virgin PTFE stem packing seal
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Brass stem shaft/PTFE seat
| Softgoods Material | PTFE |
|---|---|
| Flow Rate | 21 gpm |
| Port Type | Full |
| End Style | FNPT |
| Media | Gas/Liquids |
| Ball Material | Brass |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 3-9/16 in |
| Top to Inlet Center | 2-1/16 in |
| Type | 2-Piece |
| Pressure Rating | 400 psi WOG |
| Orifice Size | 1 in |
| Body Material | Bronze |
| Nominal Size | 1 in |
| Temperature Rating | 0 to 350 deg F |
| Series | LFB6780M1 |
| Actuator Type | Lever Handle |
| Trim Material | Brass/PTFE |
| Brand | Watts |
| Use | Threaded |
| Type | Ball Valve |
