WATTS 0555270
LF 3/4 FBV-3C-QC QUIK CNCT BV
SKU
572279

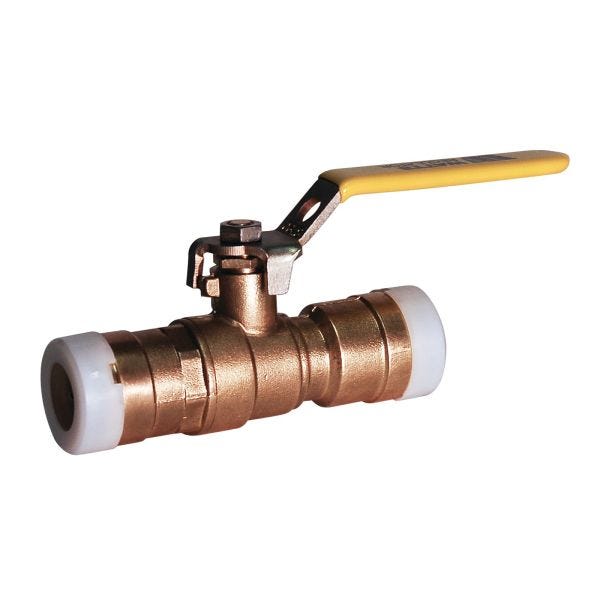

WATTS®, 0555270, Ball Valve, 2-Piece, Series: LFFBV-3C, 3/4 in Nominal, 200 psi Pressure, -40 to 180 deg F, Full Port, Media: Water, 3/4 in Orifice, 4-9/16 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Copper Silicon Alloy Body, Brass Stem and Virgin PTFE Seat Trim, Import
- Forged brass body construction with end adapter
- Lead free copper silicon alloy body
- Watts integral Quick-Connect inlet and outlet connections
- For used with Copper, CPVC, and PEX pipe
- Comes with pipe stiffeners
- No thread sealants, solders or glues needed
- It can be rotated under pressure
- Bottom loaded blow-out proof stem
- It can be removed and reused without the use of tools
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Zinc plated carbon steel handle nut
- Brass packing nut and stem
- Fluorocarbon elastomer FKM O-Ring
- Acetal O-Ring guide and collet retainer
- PTFE stem packing seal/thrust washer
| Softgoods Material | PTFE |
|---|---|
| Port Type | Full |
| Media | Water |
| Ball Material | Chrome Plated Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 4-9/16 in |
| Top to Inlet Center | 2-1/4 in |
| Type | 2-Piece |
| Pressure Rating | 200 psi |
| Orifice Size | 3/4 in |
| Body Material | Copper Silicon Alloy |
| Nominal Size | 3/4 in |
| Temperature Rating | -40 to 180 deg F |
| Series | LFFBV-3C |
| Trim Material | Brass Stem and Virgin PTFE Seat |
| Brand | Watts |
| Type | Ball Valve |
| Size | 3/4" |
