Watts Water Technologies 0559117
3/4 LFMMVM1-PEX THERM.MIX VLV
SKU
897284

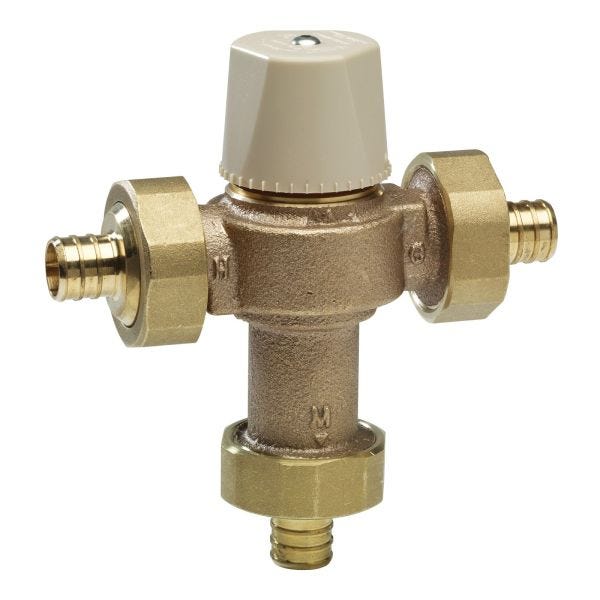

WATTS® Thermostatic Mixing Valve, Series: LFMMVM1-PEX, 3/4 in Nominal, PEX Union, 150 psi, 200 deg F, 0.5 to 20 gpm Flow, Cast Copper Silicon Alloy Body, Buna-N®/EPDM O-Ring, 5-11/16 in H x 5-1/2 in W, Domestic
- Thermal actuation technology for precise temperature control
- Locking mechanism secures temperature setting
- Lead free cast copper silicon alloy body construction
- Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water
- Thermostat controls both hot and cold water
- Solder, threaded, PEX or CPVC, quick connect end connection or with press
- Adjustment cap with locking feature
- The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
- Stainless steel disc and spring
- Polysulfone piston
- 30 psi static minimum supply pressure
- 120 to 180 deg F hot and 39 to 85 deg F cold inlet temperature
- 5 deg F above set point hot water inlet and outlet temperature differential
- 80 to 120 deg F temperature out field range
- Accurate within +/- 3 deg F temperature out
- 0.5 gpm at 0.8 psi to 20 gpm at 125 psi flow
- 25% maximum pressure differential between hot and cold water supplies
- When tested in accordance with ASSE 1017/1069/1070
| Nominal Size | 3/4 in |
|---|---|
| Series | LFMMVM1-PEX |
| Body Material | Cast Copper Silicon Alloy |
| Softgoods Material | Buna-N®/EPDM O-Ring |
| Temperature Rating | 200 deg F |
| Flow Capacity | 0.5 to 20 gpm |
| Domestic/Import | Domestic |
| Pressure Rating | 150 psi |
| Dimensions | 5-11/16 in H x 5-1/2 in W |
| End Style | PEX Union |
| Brand | Watts |
