WATTS 0559118
LF 3/4 MMVM1-US THERM MIX VLV
SKU
545442

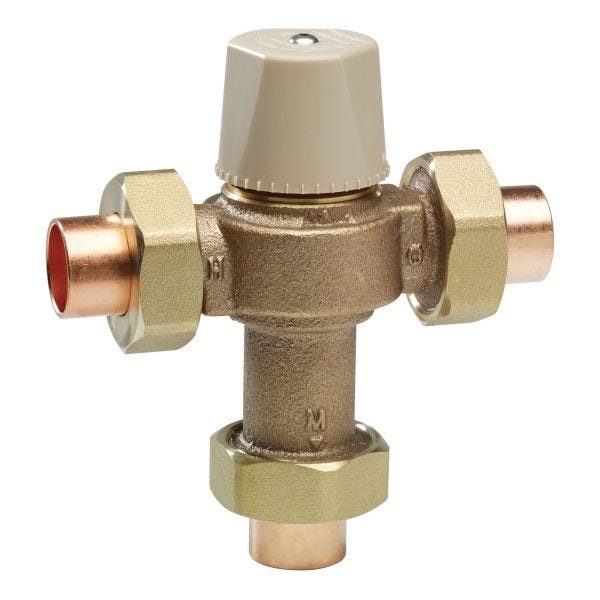

WATTS® Thermostatic Mixing Valve, Series: LFMMV, 3/4 in Nominal, Solder, 150 psi, 80 to 120 deg F, 0.5 to 20 gpm Flow, Media: Hot/Cold Water, Copper Silicon Alloy Body, Buna-N®/EPDM O-Ring, Domestic
- Thermal actuation technology for precise temperature control
- Locking mechanism secures temperature setting
- Lead free cast copper silicon alloy body construction
- Solid wax hydraulic principle thermostat assures dependable mixing of hot and cold water
- Solder, threaded, PEX or CPVC, quick connect end connection or with press
- Adjustment cap with locking feature
- Integral filter washers and check valves
- 0.5 gpm at 0.8 psi minimum, 20 gpm at 125 psi maximum
- 30 psi (207 kPa) minimum supply pressure static
- 120 to 180 deg F (49 to 82 deg C) hot/ 39 to 85 deg F (4 to 29 deg C) cold inlet temperature
- Hot water inlet to outlet differential temperature, 5 deg F (3 deg C) above set point
- Field range, 80 to 120 deg F (27 to 49 deg C) adjustable
- Maximum pressure differential between hot and cold water supplies, 25%
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Nominal Size | 3/4 in |
|---|---|
| Series | LFMMV |
| Body Material | Copper Silicon Alloy |
| Softgoods Material | Buna-N®/EPDM O-Ring |
| Temperature Rating | 80 to 120 deg F |
| Media | Hot/Cold Water |
| Flow Capacity | 0.5 to 20 gpm |
| Domestic/Import | Domestic |
| Pressure Rating | 150 psi |
| End Style | Solder |
| Brand | Watts |
