WATTS 0792010
LF 1/2 800M4QT VAC.BRK W/BV
SKU
566257

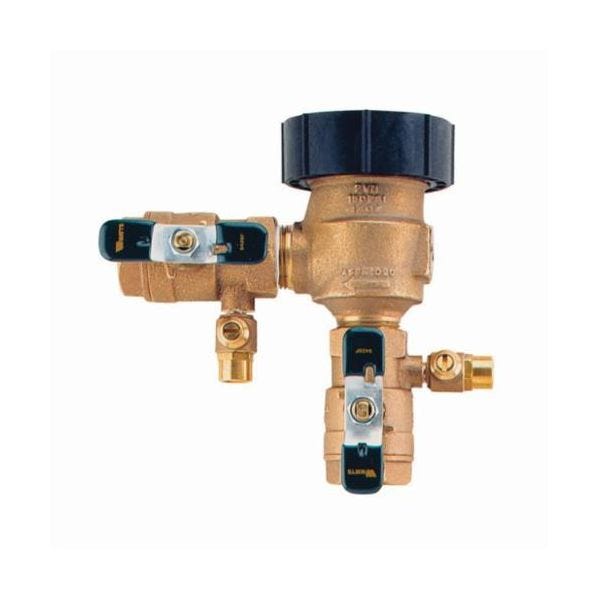

WATTS®, 0792010, Pressure Vacuum Breaker, Anti-Siphon, Series: 800M4QT, 1/2 in Nominal, 150 psi Pressure, 33 to 140 deg F, 7.5 fps Flow Rate, Drain/Blow Down Port, Cast Copper Silicon Alloy Body, 6-1/8 in L x 6-1/4 in H Dimensions, Domestic
- Female NPT inlet and outlet with quarter turn shut-offs
- Replaceable plastic seat
- Easy maintenance of internal parts
- Acetyl bonnet acts as freeze plug to prevent body damage
- O-ring bonnet seal for less possibility of fouling
- Silicone seat disc for durability
- Test cocks positioned for easy testing and winterization
- Compact space saving design
- No special tools required for servicing
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
| Domestic/Import | Domestic |
|---|---|
| Series | 800M4QT |
| Dimensions | 6-1/8 in L x 6-1/4 in H |
| Port Type | Drain/Blow Down |
| Type | Anti-Siphon |
| Body Material | Cast Copper Silicon Alloy |
| Nominal Size | 1/2 in |
| Flow Rate | 7.5 fps |
| Pressure Rating | 150 psi |
| Temperature Rating | 33 to 140 deg F |
| Brand | Watts |
