WATTS 0792077
3/8 LF WATTS 7C DUAL CHECK VLV
SKU
598463

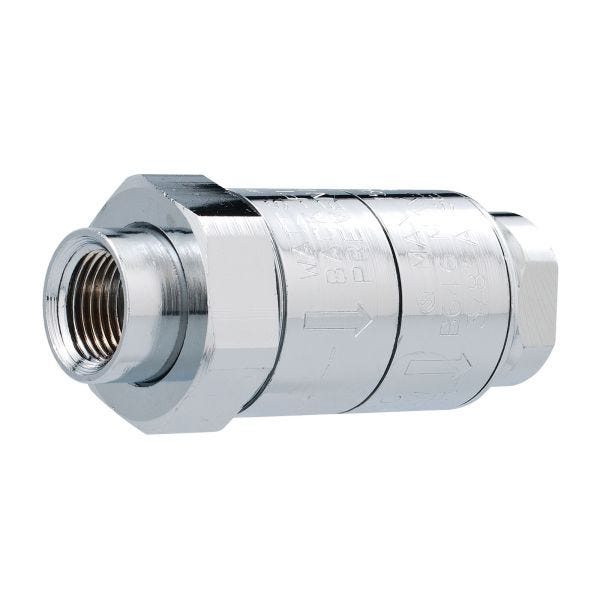

WATTS® Dual Check Valve, 3/8 in Nominal, FNPT, 150 psi, 33 to 180 deg F, Low Lead Compliance: Yes, Media: Water, 2-7/8 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, Silicone Disc/Stainless Steel Spring Trim, Buna-N® Seal, Chrome Nickel Plated, 1-1/4 in H, Import
- Temperature range is 33 to 180 deg F (0.5 to 82 deg C) continuous
- No special tools are required for servicing
- Short lay length
- Can be installed in the vertical or horizontal position
- Can be installed in many piping configurations and with a wide range of meter horns, copper setters and meter boxes
| End Style | FNPT |
|---|---|
| Softgoods Material | Buna-N® Seal |
| Temperature Rating | 33 to 180 deg F |
| Inlet to Outlet Length | 2-7/8 in |
| Domestic/Import | Import |
| Media | Water |
| Finish | Chrome Nickel Plated |
| Dimensions | 1-1/4 in H |
| Trim Material | Silicone Disc/Stainless Steel Spring |
| Low Lead Compliance | Yes |
| Pressure Rating | 150 psi |
| Nominal Size | 3/8 in |
| Body Material | Cast Copper Silicon Alloy |
| Brand | Watts |
