WATTS 0825212
LF 4"77F-DI-FDA-125 EPOXY CTD
SKU
303994

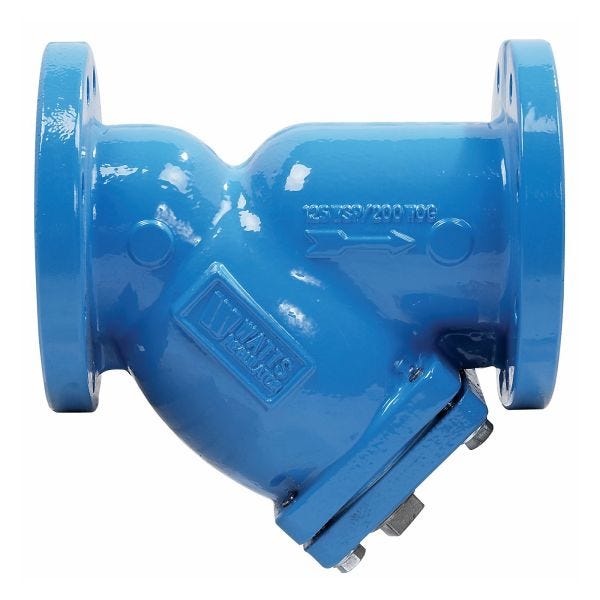

WATTS® Wye Strainer, Series: 77F-DI-FDA-125, 4 in Nominal, 12-1/8 in Overall Length, Flanged, 1-1/2 in NPT Blow-Off, Graphite, Cast Iron Body, Epoxy Coated, B Grade, Import
- Wye pattern
- Cast iron body
- 304 stainless steel perforated screens
- Flanged
- Flanges conform to american national standards Institute, class 125 (ANSI B16.1) and WW-S-2739 type 2
- Drain/blow-off connection furnished with closure plug
- Series 77F-DI-FDA-125 comes with heat fused FDA approved epoxy coating (interior and exterior)
- Graphite gasket
| Softgoods Material | Graphite |
|---|---|
| Blow-Off Size | 1-1/2 in NPT |
| Connection Type | Flanged |
| Domestic/Import | Import |
| Finish | Epoxy Coated |
| Nominal Size | 4 in |
| Overall Length | 12-1/8 in |
| Grade | B |
| Series | 77F-DI-FDA-125 |
| Body Material | Cast Iron |
| Brand | Watts |
