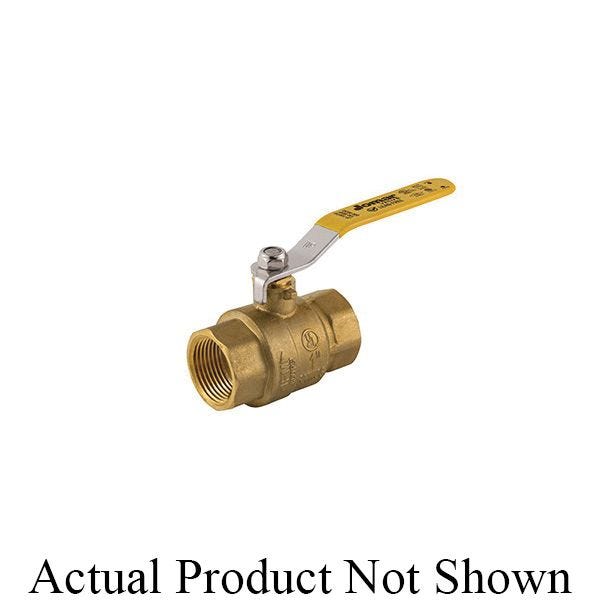

Jomar Valve 100-104SSG

3/4" JF-100TG IPS F/P BALL VLV
SKU
859171
The product cannot be delivered by Truck Shipping

Jomar Valve® Ball Valve, 2-Piece, 3/4 in Nominal, Thread End Style, 600 psi WOG Pressure, Full Port, 3/4 in Orifice, 304 Stainless Steel Ball, 2.51 in Inlet to Outlet Length, 2.36 in Top to Inlet Center, Brass Body, 304 Stainless Steel Stem and PTFE Seat Trim, PTFE/Buna-N Softgoods

  • Gland follower and single O-Ring stem design
  • Blow-out proof stem
  • 100% leak tested
  • Wetted surfaces contains less than 0.25 % lead content
  • C46400 Lead free brass end connection, steel chrome plated handle
  • Rubber lock washer
  • 150 psi working steam pressure
  • PTFE packing and Buna-N stem O-ring
More Information
Softgoods Material PTFE/Buna-N
Port Type Full
End Style Thread
Ball Material 304 Stainless Steel
Inlet to Outlet Length 2.51 in
Top to Inlet Center 2.36 in
Type 2-Piece
Pressure Rating 600 psi WOG
Orifice Size 3/4 in
Body Material Brass
Nominal Size 3/4 in
Trim Material 304 Stainless Steel Stem and PTFE Seat
Brand Jomar
Use Threaded
Type Ball Valve
Size 3/4"
