AO Smith 100210111
1" COPPER INLET TUBE
SKU
790493

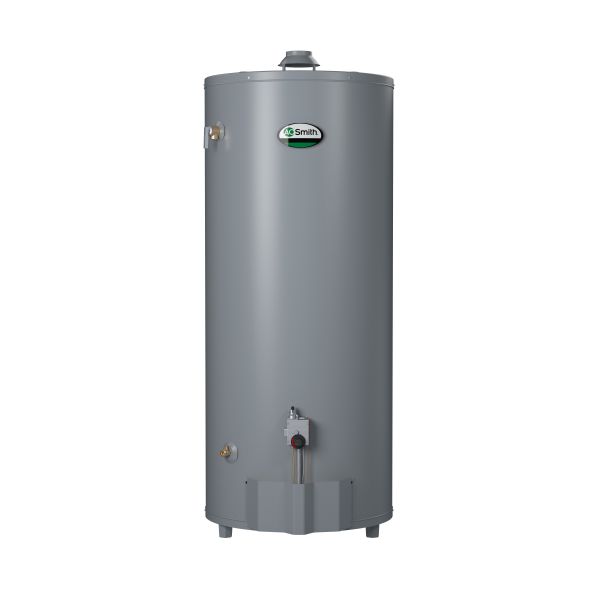

AO Smith® ProLine® Gas Water Heater, High Recovery, Series: GCN-75, 75100 Btu/hr Heating, Natural Gas, 1/2 in NPT Gas Connection, 74 gal Tank, Atmospheric Vent, 4 in Vent, Energy Factor: 0.81, 1 in NPT Water Connection, 150 psi, Tall or Short: Short, Ultra Low Nox: Yes, 25-1/4 in Dia x 62-1/16 in H
- Fully automatic controls with safety shutoff accurate, dependable control system requires no electric connections
- Fixed automatic gas shutoff device for added safety, not recommended for 180 deg F sanitizing
- Heavy gauge steel jacket - Finished with baked enamel over bonderized undercoat
- Glasslined tank - Maximizes tank life
- Foam insulation saves fuel, helps reduce standby heat loss
- Ultra-low NOx emissions - Complies with SCAQMD rule 1146.2 and other Air Quality Management Districts with similar requirements of 14 ng/j
- Easy-to-install - Completely factory-assembled
- Only gas, water and vent connections need to be made
- All connections are located in front and top of heaters for ease of installation and service
- Draft hood - Low profile draft hood furnished as standard equipment
- Coregard™ anode rod - Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection for longer than standard anode rods
- Equipped with gas pressure regulator
- Integral automatic gas shutoff system prevents excessive water temperature
- Standard with side loop fittings for use with hydronic heating applications
- Approved for installation from sea level to 7700 ft elevation
| Type | High Recovery |
|---|---|
| Heating Capacity | 75100 Btu/hr |
| Energy Factor | 0.81 |
| Ultra Low NOx | Yes |
| Tall or Short | Short |
| Pressure Rating | 150 psi |
| Gas Connection | 1/2 in NPT |
| Vent Type | Atmospheric |
| Tank Capacity | 74 gal |
| Dimensions | 25-1/4 in Dia x 62-1/16 in H |
| Water Connection | 1 in NPT |
| Vent Size | 4 in |
| Fuel Type | Natural Gas |
| Series | GCN-75 |
| Brand | Lochinvar LLC |
