AO Smith 100234165

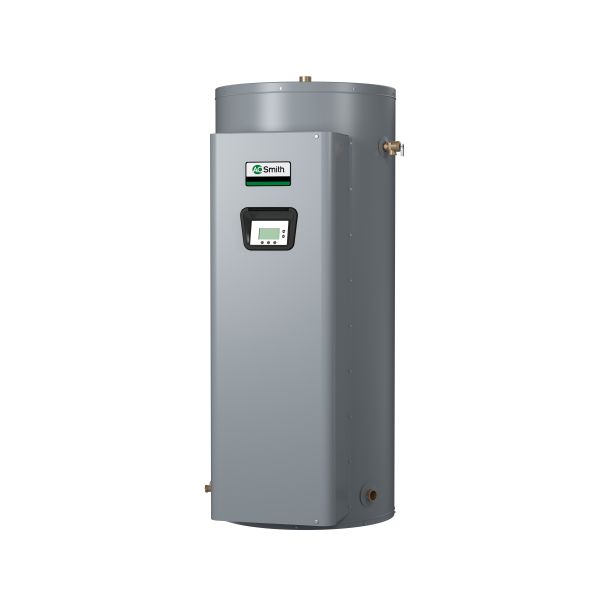

AO Smith® Electric Water Heater, Series: Gold Xi DVE-80A, 81912 Btu/hr Heating, 80 gal Tank, 208 VAC, 66.6 A Full Load, 24000 W, 3 ph, 1-1/4 in NPT Water Connection, (6) Incoloy® Heating Element, 328 gph at 100 deg F Rise Recovery, 150 psi, 90 to 190 deg F, Tall Tall or Short, ASME Yes/No: Yes, Baked Enamel, 25-1/2 in W x 31 in D x 60-1/4 in H

• Designed for use as a recovery heater having its own storage tank or booster for supplying sanitizing rinse water for dish washing
• Easy to understand text and animated icons display detailed operational and diagnostic information
• Fault or alert messages appear if an operational issue occurs
• Immersion temperature control adjustable through a range of 90 to 190 deg F
• Control system automatically lowers the operating set point by a programmed value during user-defined time periods, helps reduce operating costs during unoccupied or off - peak demand periods
• Banks of heating elements (3 elements per bank) are energized according to adjustable (1 to 20 deg F) differential set points for each bank
• First bank on is the last bank off
• Helps reduce current surge and provides accurate water temperature control
• Patented golden rod elements provide long life with superior scaling resistance
• Low watt density means lower surface temperature to minimize scale build-up and more surface to heat water
• Glass lined tank interior is coated with glass specially developed by AO Smith® for water heater use
• Power circuit fusing protects elements and contactors from short circuits, overloading or line surges
• Factory installed terminal block
• Immersion style thermostat
• Simplified circuitry, color coded for ease of service hinged control compartment door for quick, easy access
• Two anode rod for maximum corrosion protection
• Cabinet has bonderized undercoat with baked enamel finish
• Top outlet, side inlet and relief valve openings
• Nipple and brass drain valve
• Foam insulation reduces costly heat loss
