AO Smith 100132711
SAFETY RECALL ALL KH & NK SERI
SKU
836103

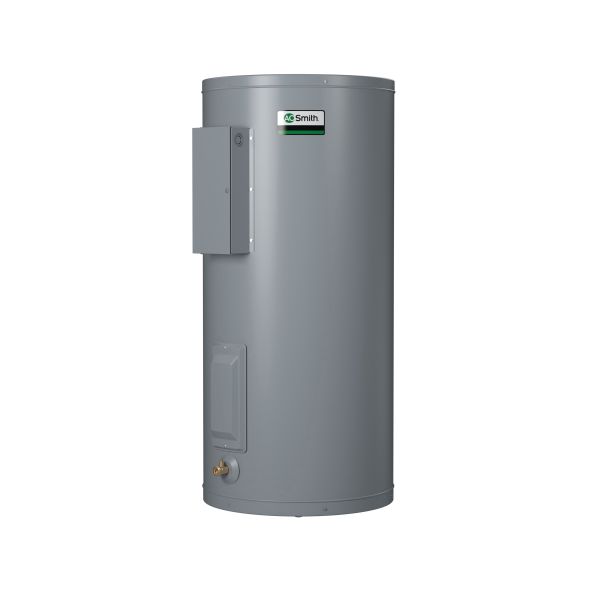

AO Smith® Electric Water Heater, Upright, Series: Dura-Power™ DEN-40, 40 gal Tank, 240 VAC, 9000 W, 3 ph, 3/4 in FNPT Water Connection, (2) Zinc Plated Copper Sheath Heating Element, 51 gph at 36 deg F Rise Recovery, 150 psi, 120 to 181 deg F, Tall or Short: Tall, ASME Yes/No: No, Baked Enamel, 20-1/2 in W x 45-1/8 in H
- Designed for use as a recovery heater having its own storage tank
- Glass lined tank interior is coated with glass specially developed by AO Smith® for water heater use
- Two zinc plated copper sheaths for longer life
- Medium watt density means lower surface temperature to minimize scale build-up and more surface to heat water
- Factory installed terminal block
- Temperature control (adjustable through arrange of 110 to 170 deg F on single element and 120 to 181 deg F on dual element) and manual reset high temperature cut-off per element (dual element models)
- Simplified circuitry, color coded for ease of service
- Anode rod for maximum corrosion protection
- Cabinet has bonderized undercoat with baked enamel finish
- Top inlet and outlet openings
- Brass drain valve
| ASME Yes/No | No |
|---|---|
| Type | Upright |
| Finish | Baked Enamel |
| Temperature Rating | 120 to 181 deg F |
| Recovery Rate | 51 gph at 36 deg F Rise |
| Phase | 3 ph |
| Tall or Short | Tall |
| Pressure Rating | 150 psi |
| Voltage Rating | 240 VAC |
| Tank Capacity | 40 gal |
| Dimensions | 20-1/2 in W x 45-1/8 in H |
| Water Connection | 3/4 in FNPT |
| Heating Element | (2) Zinc Plated Copper Sheath |
| Power Rating | 9000 W |
| Series | Dura-Power™ DEN-40 |
| Brand | Lochinvar LLC |
