LEGEND 101-046NL

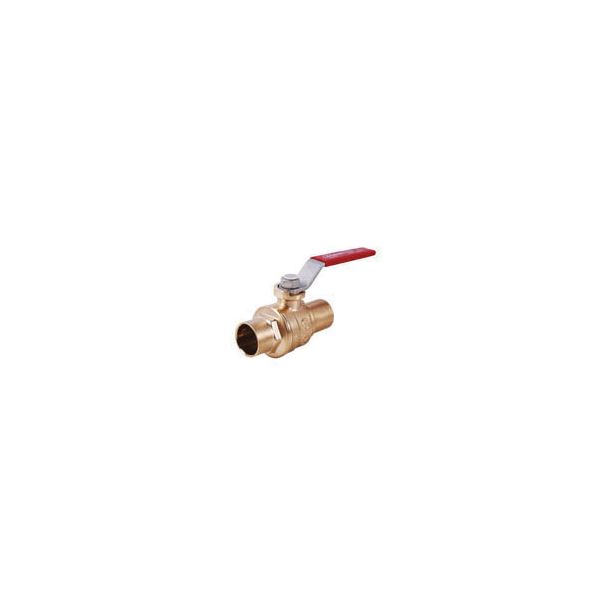

LEGEND 1-1/4" CXC LF BV
SKU
758291
LEGEND Ball Valve, Lead Free, Series: S-1001NL, 1-1/4 in Nominal, C, 600 psi, 250 deg F, 113.24 gpm, Full Port, Media: Water, Brass Ball, 4.31 in Inlet to Outlet Length, 2.24 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, TFM/PTFE, Polished Chrome, Import
- Dacromet® coated steel, tamper-evident handwheel nut/handle/locking device, FKM fluoroelastomer stem O-Rings, Dyneon® TFM® PTFE anti-friction washer/thrust washer, Lead free forged brass stem/ball/body/end adapter
- Steel handle is Dacromet® coated and will not corrode in aggressive environments
- Valve body, end adaptor and cavity ball are forged brass for lighter weight and greater durability, resulting in less torque necessary to actuate the valve and longer life for the seats
- O-Ring stem design, lighter weight and durable forged no lead brass body, Blow-out proof stem, PTFE seats for improved wear
- Does not require any additional steps to solder, as compared to traditional brass valves
- Bottom loaded stem is Blow-out proof and includes a PTFE thrust washer that reduces friction and makes for easier actuation
- CSA certified for use with natural, manufactured, mixed, liquid petroleum and lp/gas air mixtures
- Factory mutual approved for fire protection service
- Maintenance-free valve
- TFM/PTFE thrust washer
| Softgoods Material | TFM/PTFE |
|---|---|
| Flow Rate | 113.24 gpm |
| Port Type | Full |
| End Style | C |
| Media | Water |
| Ball Material | Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 4.31 in |
| Top to Inlet Center | 2.24 in |
| Pressure Rating | 600 psi |
| Body Material | Brass |
| Nominal Size | 1-1/4 in |
| Temperature Rating | 250 deg F |
| Series | S-1001NL |
| Trim Material | Brass Stem and PTFE Seat |
| Finish | Polished Chrome |
| Brand | Legend |
| Use | Sweat |
| Type | Ball Valve |
| Size | 1 1/4" |
