LEGEND 101-454NL
3/4" T2009 NL COMP FP BV
SKU
874305

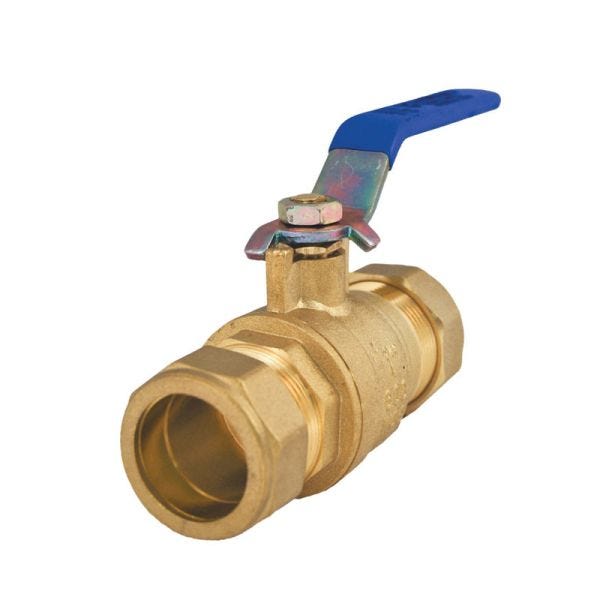

LEGEND Ball Valve, Lead Free, Series: T-2009NL, 3/4 in Nominal, Compression, 600 psi CWP, Full Port, Polished Chrome Forged Brass Ball, 3.72 in Inlet to Outlet Length, 1.86 in Top to Inlet Center, Forged Brass Body, Forged Brass Stem and PTFE Seat Trim, Import
- Lead free design is suitable for all no-lead potable water installations, in full compliance of all Lead free plumbing laws
- Dezincification-resistant (DZR) forged brass resists corrosion from exposure to a wide variety of water conditions
- Tubing compression connections permit easy, convenient, Lead free compliant replacement of a worn, leaded valve, without the need for sweating
- Quarter-turn, positive-shutoff full port design, make the T-2009NL the ideal replacement for a leaking multi-turn, drip-tight, reduced port gate valve
- Self-cleaning chrome plated ball resists mineral build-up and scaling
- 150 psi saturated steam
| Port Type | Full |
|---|---|
| End Style | Compression |
| Ball Material | Polished Chrome Forged Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 3.72 in |
| Top to Inlet Center | 1.86 in |
| Pressure Rating | 600 psi CWP |
| Body Material | Forged Brass |
| Nominal Size | 3/4 in |
| Series | T-2009NL |
| Trim Material | Forged Brass Stem and PTFE Seat |
| Brand | Legend |
| Type | Ball Valve |
| Size | 3/4" |
