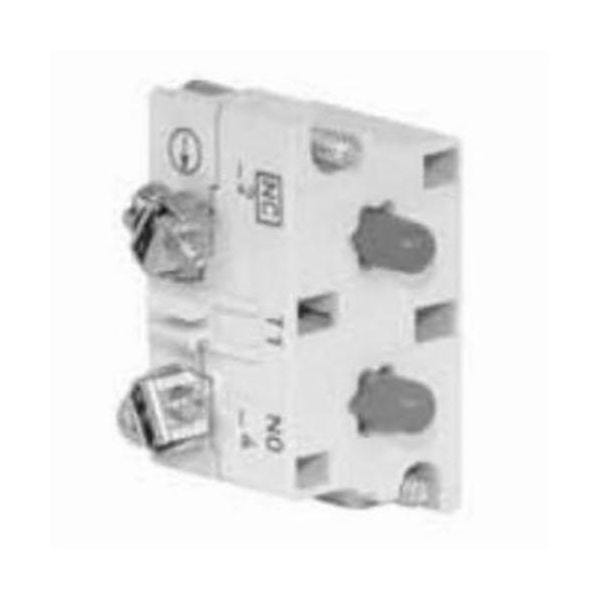

EATON Contact Block, Heavy Duty, Series: 10250T, 30.5 mm Size, 1NO Contact Configuration, 10 A at 600 VAC, 5 A at 250 VDC Contact, Silver Contact, Momentary Action, Thermoplastic Block, Pushbutton Operator, NEMA 3/3R/4/4X/12/13 NEMA Rating, IP65 Enclosure, Pressure Terminal, Stackable Mounting, Die-Cast Zinc, Green/Red, 1.9 in L x 1.3 in W x 2.1 in H Dimensions
- Eaton's contact blocks feature enclosed silver contacts with pointed reliability nibs
- To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
- The same durable construction is also available with the corrosive-resistant E34 line of pushbuttons
- Stack up to 6-blocks (6-circuits) unless otherwise noted
- For pushbutton control station
| Dimensions | 1.9 in L x 1.3 in W x 2.1 in H |
|---|---|
| Contact Material | Silver |
| Series | 10250T |
| Action | Momentary |
| Size | 30.5 mm |
| NEMA Rating | NEMA 3/3R/4/4X/12/13 |
| Operator Type | Pushbutton |
| Contact Configuration | 1NO |
| Contact Rating | 10 A at 600 VAC, 5 A at 250 VDC |
| Enclosure Type | IP65 |
| Color | Green/Red |
| Type | Heavy Duty |
| Material | Die-Cast Zinc |
| Block Material | Thermoplastic |
| Terminal Type | Pressure |
| Mounting Type | Stackable |
| Brand | Eaton |
| Type | Push Buttons |
