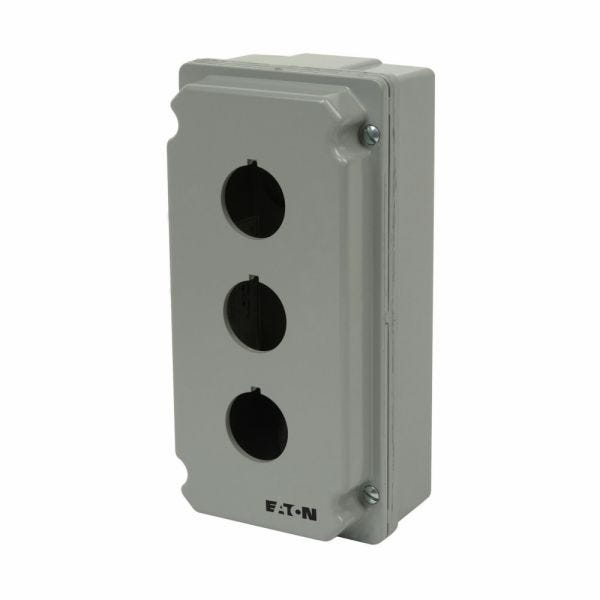

EATON Pushbutton Enclosure, 3-Element Heavy Duty Oiltight/Watertight, Series: 10250T, 8.1 in Length, 4.4 in Width, 4.1 in Depth, NEMA 4/4X/12/13, 3 Outlet, Surface Mounting, Die Cast Zinc
- Heavy duty zinc die cast construction
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bite through paint and other coatings to provide secure ground
- Slow make and break contact operation (positive opening NC contacts) for improved safety
- All cast enclosures can be converted to base mounting of contact blocks, when used with E30 pushbuttons only the one element enclosure can be used
| Mounting Type | Surface |
|---|---|
| Type | 3-Element Heavy Duty Oiltight/Watertight |
| Length | 8.1 in |
| Series | 10250T |
| Number of Outlets | 3 |
| Material | Die Cast Zinc |
| Width | 4.4 in |
| NEMA Rating | NEMA 4/4X/12/13 |
| Depth | 4.1 in |
| Brand | Eaton |
