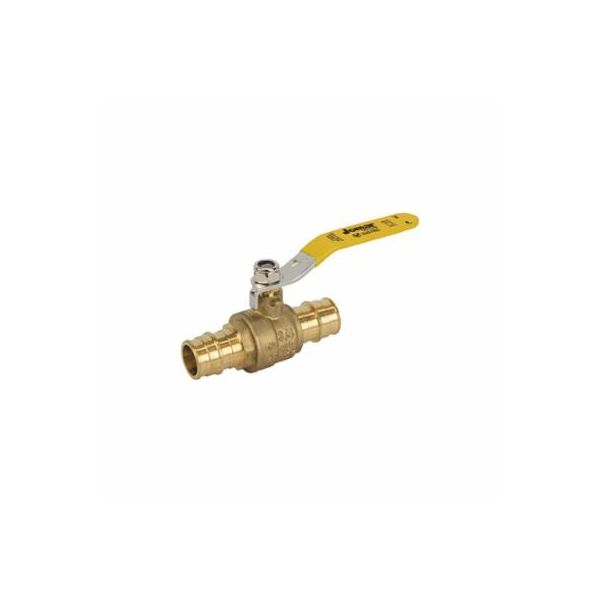

Jomar Valve 104-524PG
3/4" F1960 LF BALL VALVE
SKU
914743
Jomar Valve® Ball Valve, 2-Piece, 3/4 in Nominal, PEX Expansion End Style, 400 psi WOG Pressure, 200 deg F, Standard Port, Stainless Steel Ball, 3.31 in Inlet to Outlet Length, 1.81 in Top to Inlet Center, Brass Body, 304 Stainless Steel Stem and PTFE Seat Trim, PTFE/Buna-N Softgoods
- Gland follower and single O-Ring stem design
- Blow-out proof stem
- 100% leak tested
- Wetted surfaces contains less than 0.25 % lead content
- Expansion connection rated to 150 psi WOG up to 200 deg F
- PTFE packing and Buna-N O-ring
| Softgoods Material | PTFE/Buna-N |
|---|---|
| Port Type | Standard |
| End Style | PEX Expansion |
| Ball Material | Stainless Steel |
| Inlet to Outlet Length | 3.31 in |
| Top to Inlet Center | 1.81 in |
| Type | 2-Piece |
| Pressure Rating | 400 psi WOG |
| Body Material | Brass |
| Nominal Size | 3/4 in |
| Temperature Rating | 200 deg F |
| Trim Material | 304 Stainless Steel Stem and PTFE Seat |
| Brand | Jomar |
