LEGEND 105-006NL
11/4" PRO PRESS SWING CHECK
SKU
598283

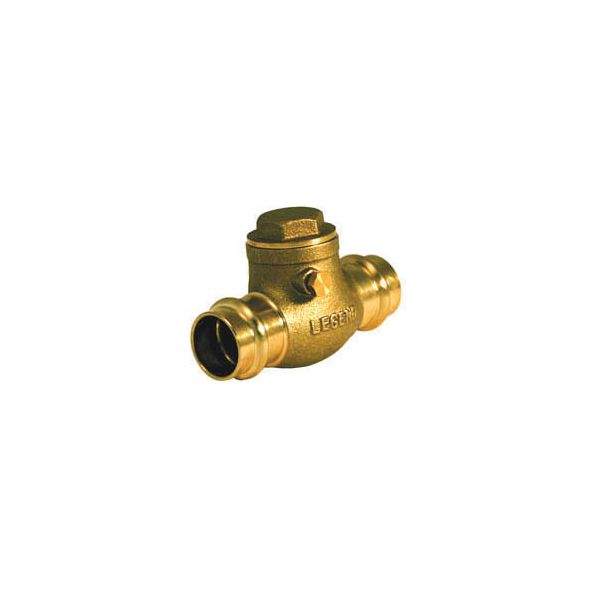

LEGEND LegendPress™ Swing Check Valve, Lead Free, Series: P-451NL, 1-1/4 in Nominal, Press, 200 psi CWP, Low Lead Compliance: Yes, Full Port, 4.13 in Inlet to Outlet Length, Cast Brass Body, Forged Brass Trim, EPDM Rubber Elastomer, 3.12 in H, Import
- Lead-free design is suitable for all no lead potable water installations
- Labour-saving VUS-pattern press-to-connect tubing sockets eliminate the potential fire hazard associated with solder connections
- A durable, full-pattern cast brass body resists distortion and maintains sealing integrity after the pressing process
- Large, integral seat and disc sealing surfaces assure positive closure
- T-pattern body permits either vertical (upward flow only) or horizontal (assembly cap upright) installations
- Forged brass hinge pin permits smooth, non-binding disc operation under varying flow conditions
- Forged brass disc
- EPDM rubber elastomer socket O-ring
| End Style | Press |
|---|---|
| Softgoods Material | EPDM Rubber Elastomer |
| Inlet to Outlet Length | 4.13 in |
| Domestic/Import | Import |
| Dimensions | 3.12 in H |
| Trim Material | Forged Brass |
| Low Lead Compliance | Yes |
| Port Type | Full |
| Pressure Rating | 200 psi CWP |
| Nominal Size | 1-1/4 in |
| Series | P-451NL |
| Body Material | Cast Brass |
| Brand | Legend |
| Type | Swing Check Valve |
