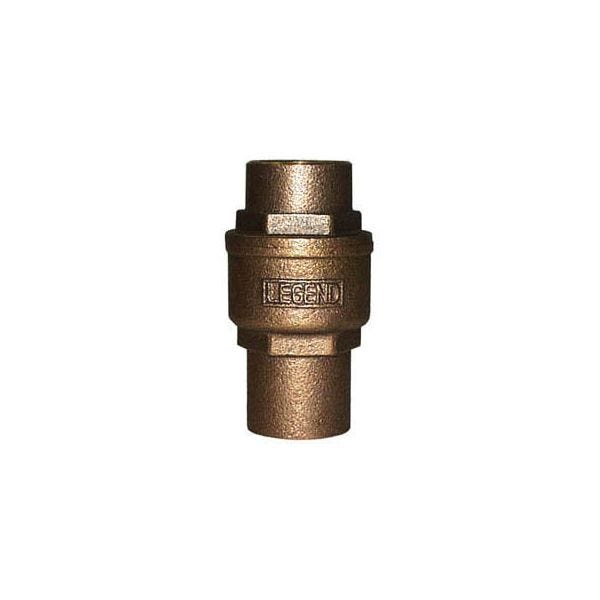

Legend 105-464

LEGEND 3/4 SWT SPRING CHECK VL
SKU
625767
The product cannot be delivered by Truck Shipping

LEGEND In-Line Check Valve, Series: S-455, 3/4 in Nominal, C End Style, 250 psi CWP Pressure, 200 deg F, Spring-Loaded Latch-Lock Handle Actuator, 2.8 in Inlet to Outlet Length, Bronze Body, Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring Trim, 1-1/2 in H Dimensions, Import

  • Durable, heavy-wall cast bronze design is ideal for commercial or industrial applications
  • Spring-loaded silent closure operation
  • The 1/2 lb cracking pressure spring rate permits faster low-pressure opening without sacrificing quick closure in backflow scenarios
  • Bore-guided stem-poppet minimizes over-travel, reducing the chance of premature wear and failure
  • Can be installed in the vertical or horizontal position
  • Not for reciprocating air compressor installations
  • cast bronze construction
More Information
End Style C
Temperature Rating 200 deg F
Inlet to Outlet Length 2.8 in
Domestic/Import Import
Dimensions 1-1/2 in H
Trim Material Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring
Actuator Type Spring-Loaded Latch-Lock Handle
Pressure Rating 250 psi CWP
Nominal Size 3/4 in
Series S-455
Body Material Bronze
Brand Legend
