LEGEND 105-467NL
1-1/2" LF SWT SPRING CHECK VLV
SKU
635129

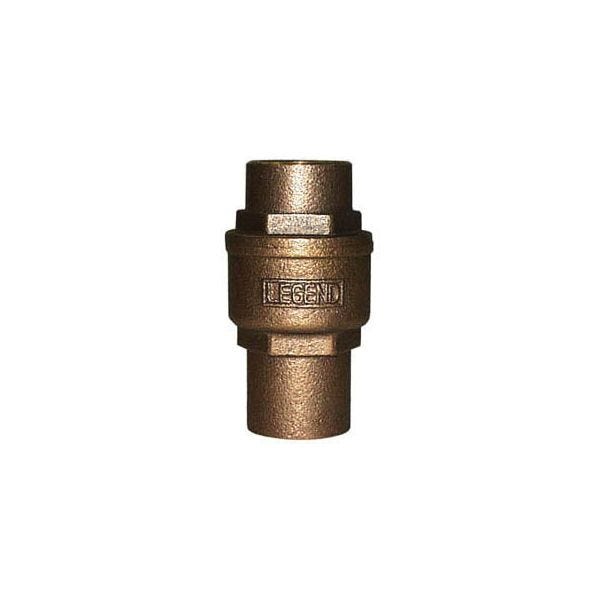

LEGEND GREEN™ In-Line Check Valve, Series: S-455NL, 1-1/2 in Nominal, C End Style, 250 psi CWP Pressure, 200 deg F, Yes Low Lead Compliance, Spring-Loaded Latch-Lock Handle Actuator, 4.23 in Inlet to Outlet Length, Bronze Body, Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring Trim, 2.6 in H Dimensions, Import
- Durable, heavy-wall cast bronze design is ideal for commercial or industrial applications
- Spring-loaded silent closure operation
- The 1/2 lb cracking pressure spring rate permits faster low-pressure opening without sacrificing quick closure in backflow scenarios
- Bore-guided stem-poppet minimizes over-travel, reducing the chance of premature wear and failure
- Can be installed in the vertical or horizontal position
- Not for reciprocating air compressor installations
- Lead-free design is suitable for all state and federal public law (111-380) potable water installations
- cast bronze construction
| End Style | C |
|---|---|
| Temperature Rating | 200 deg F |
| Inlet to Outlet Length | 4.23 in |
| Domestic/Import | Import |
| Dimensions | 2.6 in H |
| Trim Material | Buna-N (NBR) Rubber Seat Disc/Phosphor Bronze Wire Spring |
| Actuator Type | Spring-Loaded Latch-Lock Handle |
| Low Lead Compliance | Yes |
| Pressure Rating | 250 psi CWP |
| Nominal Size | 1-1/2 in |
| Series | S-455NL |
| Body Material | Bronze |
| Brand | Legend |
