Legend 107-143NL
1/2 T-521 NL BOILER DRAIN
SKU
580995

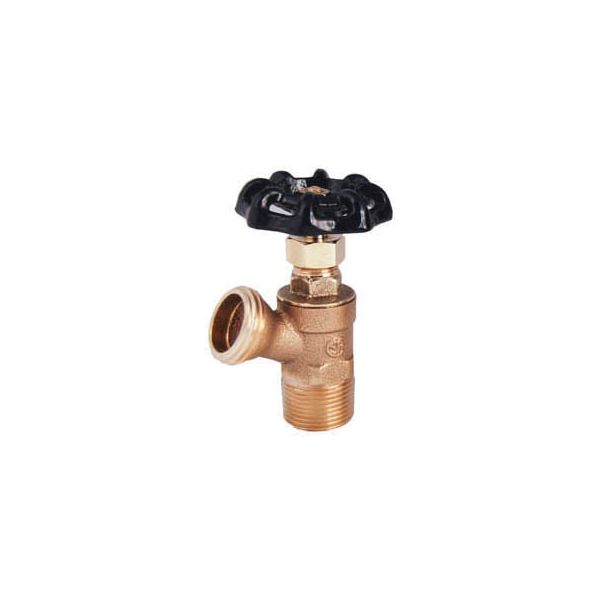

LEGEND Boiler Drain Valve, Series: T-521NL, 1/2 in Nominal, MNPT End Style, 125 psi Pressure, Full Port, Media: Oil/Water, Handwheel Actuator, Brass Body, Cast Brass Trim, Buna-N Rubber Seat Washer Softgoods, 2.6 in W x 3.6 in H (Open) Dimensions, Import
- Lead free design is suitable for all no lead potable water installations in full compliance of all lead free plumbing laws
- Full-pattern body, stem and handwheel construction is more durable than competitors' reduced-material
- An electric-induction furnace casting process optimizes molten brass temperature, resulting in superior cast body and bonnet components
- Equipped with a stem packing and packing nut design, which are superior to packless-bonnet stem seal designs
- Cast iron handle brass packing nut, NBR (Buna-N) rubber stem packing, stainless steel seat retaining screw, cadmium plated steel handle fastened
- All 3/4 in GHT (garden hose) outlets accept 3/4 in hose-thread-mounted vacuum breakers
- Cast brass body
| Softgoods Material | Buna-N Rubber Seat Washer |
|---|---|
| Dimensions | 2.6 in W x 3.6 in H (Open) |
| Port Type | Full |
| End Style | MNPT |
| Media | Oil/Water |
| Domestic/Import | Import |
| Pressure Rating | 125 psi |
| Body Material | Brass |
| Nominal Size | 1/2 in |
| Series | T-521NL |
| Actuator Type | Handwheel |
| Trim Material | Cast Brass |
| Brand | Legend |
| Type | Boiler Drains |
| Size | 1/2" |
