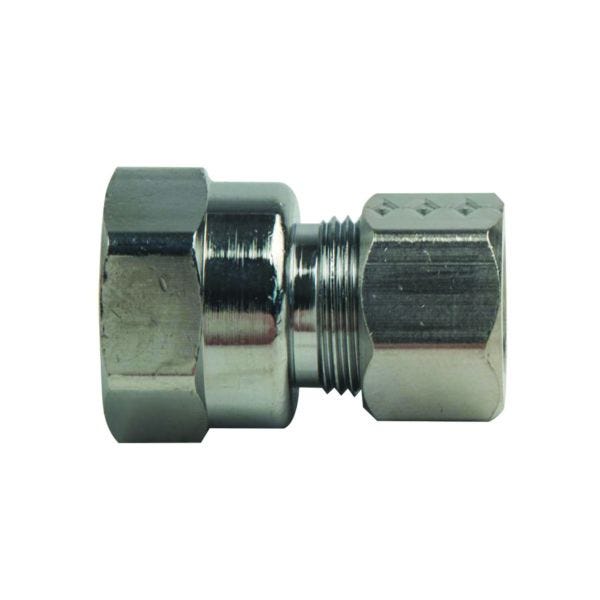

BrassCraft 10X C
LF 3/8OD X3/8FIP CP ADAPTER
SKU
1219
BrassCraft® Tube Adapter, Series: 10 Series, Adapter Fitting/Connector, 3/8 in Nominal, Compression x FNPT End Style, 0.032 in Thickness, 3/4 in Hex, 1.19 in Length, 200 psi Pressure, -65 to 250 deg F, Brass, Polished Chrome, 0.84 in H Dimension, Domestic
- Does not require any flaring, soldering or other type of tubing preparation
- Manufactured from low lead compliant brass
- For use with potable water, many different types of instrumentation applications, hydraulic and pneumatic systems
- Designed to be used with aluminum, copper and plastic tubing, not for use with steel tubing
- Plastic tubing requires 63PT insert and 60PT sleeve
- Drill through
- Fair vibration resistance
| Temperature Rating | -65 to 250 deg F |
|---|---|
| Finish | Polished Chrome |
| Dimensions | 0.84 in H |
| Length | 1.19 in |
| End Style | Compression x FNPT |
| Hex Size | 3/4 in |
| Domestic/Import | Domestic |
| Nominal Size | 3/8 in |
| Fitting/Connector Type | Adapter |
| Material | Brass |
| Thickness | 0.032 in |
| Series | 10 Series |
| Pressure Rating | 200 psi |
| Brand | BrassCraft |
| OD Tube Size | 3/8" |
| Type | Female Adapters |
