Leviton 1223-2WL
20AMP 120/277V TOGG LOCK WHT
SKU
762685

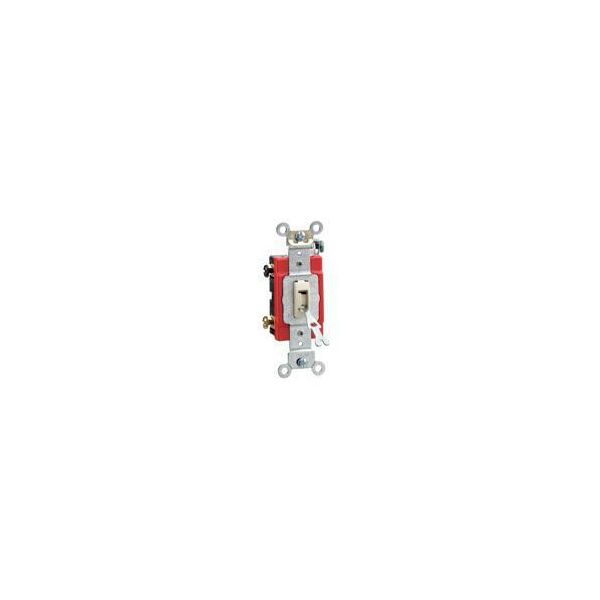

Leviton® AC Quiet Toggle Switch, 3-Way Self-Grounding, 120/277 VAC, 20 A, 1/2 hp Power, Key Operated Actuator, Surface Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Thermoplastic, White, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- Specification grade
- Tamper resistant
- #8-32 brass terminal screws
- 0.048 in THK galvanized steel strap
- Polycarbonate toggle, thermoplastic base and cover
- 1 hp at 120 VAC, 2 hp at 240 VAC power rating
- Key locking toggle
- Box mounting
| Dimensions | 46 in H x 1.31 in W x 13 in D |
|---|---|
| Power Rating | 1/2 hp |
| Voltage Rating | 120/277 VAC |
| Operating Cycles | 50000 Cycles |
| Mounting | Surface |
| Environmental Conditions | -40 to 65 deg C Operating Temperature |
| Contact Rating | 1 hp at 120 VAC, 2 hp at 240 VAC |
| Color | White |
| Type | 3-Way Self-Grounding |
| Material | Thermoplastic |
| Terminal Type | Screw |
| Amperage Rating | 20 A |
| Actuator | Key Operated |
| Enclosure | NEMA WD-1/WD-6 |
| Brand | Leviton Mfg |
| Amperage | 20 Amp |
| Type | Toggle |
| Voltage | 120/277V |
| Color | white |
