Leviton 123-PI
123-PI IV PLSTC PLUG-NEMA1-15P
SKU
701904

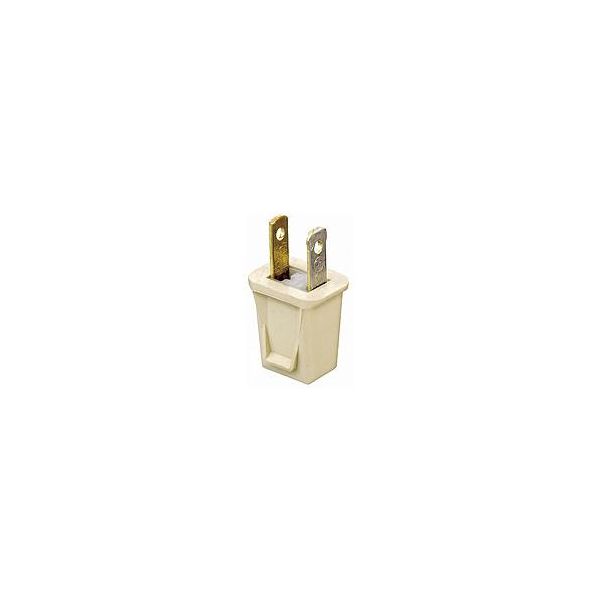

Leviton® 123-PI Straight Blade Plug, Cable Mount Non-Grounding Polarized, 125 VAC, 10 A, 2 Pole, 2 Wires, NEMA 1-15P NEMA Rating, Residential Grade, -40 to 60 deg C, Thermoplastic, Ivory, 16 in H x 0.98 in W x 0.75 in D Dimensions
- Triple drive standard head screws
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Deep slotted, backed out terminal screws draw backwire clamps securely for maximum conductivity
- Husk and module keyed for easy alignment during wiring
- Brass plug blades and connector contacts for maximum conductivity
- 20 to 18 AWG terminal accommodation and 18-2 SPT-1 cord grip
- Built-in cord grip adjusts automatically for use with #18 to 3 AWG through #12 to 3 AWG cords
- Motor base inlet accepts #10 AWG maximum copper or copper clad wire
- Brass blade and contacts
| Grade | Residential |
|---|---|
| Number of Poles | 2 |
| Color | Ivory |
| Type | Cable Mount Non-Grounding Polarized |
| Dimensions | 16 in H x 0.98 in W x 0.75 in D |
| Amperage Rating | 10 A |
| Number of Wires | 2 |
| Voltage Rating | 125 VAC |
| Temperature Rating | -40 to 60 deg C |
| Material | Thermoplastic |
| NEMA Rating | NEMA 1-15P |
| Brand | Leviton Mfg |
