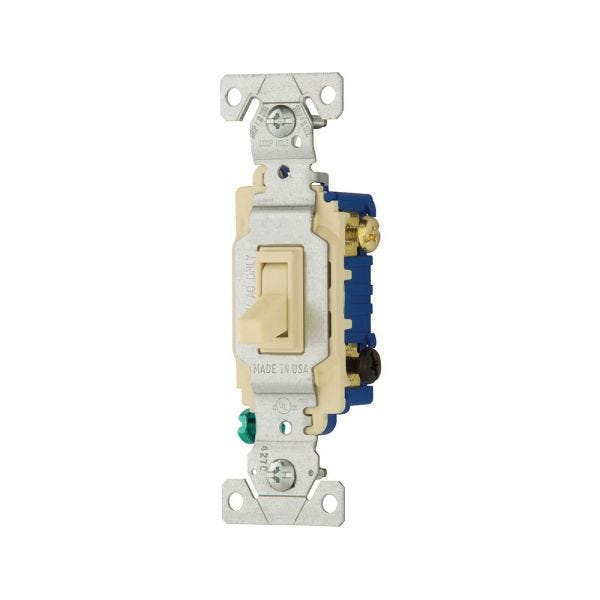

EATON 1303-7V-BOX
1303-7V 3WAY 15A IV AC SW
SKU
699818
EATON Arrow Hart® Toggle Switch, 3-Way Grounding Residential/Specification Grade, Series: 1303-7, 120 VAC, 15 A, 1/2 hp, 2 hp Power, Toggle Actuator, Push-In/Side Wire Terminal, 30000 Cycles Operating Cycles, Polycarbonate, Ivory, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in L x 0.88 in W x 3.28 in H Dimensions
- Push-in terminals accept 14 AWG solid wire only, side wire terminals accept up to 10 AWG solid wire
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
- Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
- Wire looper speeds termination of both 14 and 12 AWG wire
- Lighted toggle glows in "off" position
- 3-way switches feature additional push-in common termination for feed-through tapping
- 1/2 hp at 120 VAC, 2 hp at 240 VAC
| Dimensions | 1.31 in L x 0.88 in W x 3.28 in H |
|---|---|
| Power Rating | 1/2 hp, 2 hp |
| Voltage Rating | 120 VAC |
| Operating Cycles | 30000 Cycles |
| Series | 1303-7 |
| Environmental Conditions | -4 to 140 deg F Operating Temperature |
| Color | Ivory |
| Type | 3-Way Grounding Residential/Specification Grade |
| Material | Polycarbonate |
| Terminal Type | Push-In/Side Wire |
| Amperage Rating | 15 A |
| Actuator | Toggle |
| Brand | Cooper Wiring Devices |
| Amperage | 15 Amp |
| Number | 3 Pole |
| Type | 3-Way |
| Voltage | 120V |
| Color | Ivory |
