PHD 145 0500EG
#145 #5 ADJ SWIVEL RING HGR W/
SKU
890834

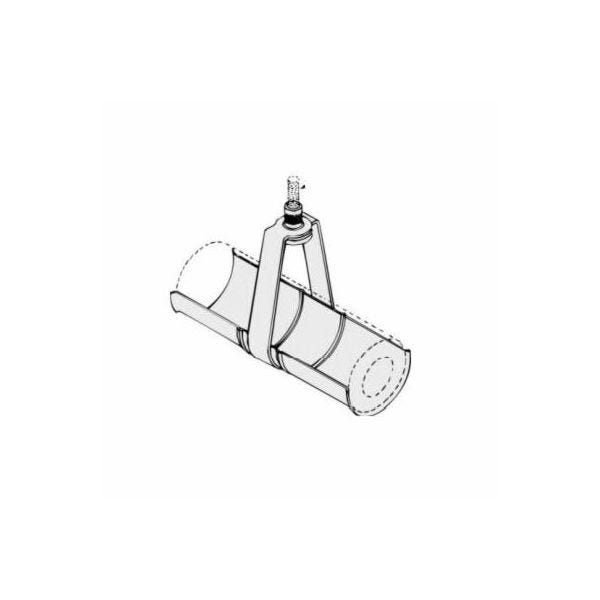

PHD Swivel Ring Hanger, Adjustable, Series FIG 145, #5 Pipe, 525 lb, 3/8 in Rod, 3-1/2 in Hanger, Low Carbon Steel, Electro-Galvanized
- Designed for the suspension of insulated pipe lines
- Fig 145 is a combination of our Fig 160 shield welded to a Fig 141 hanger, allows vertical adjustment after installation and offers maximum protection from crushing of the insulation by the hanger
| Type | Adjustable |
|---|---|
| Finish | Electro-Galvanized |
| Specifications | 3-1/2 in Hanger |
| Pipe Size | #5 |
| Rod Size | 3/8 in |
| Load Capacity | 525 lb |
| Material | Low Carbon Steel |
| Series | FIG 145 |
| Brand | PHD Manufacturing |
| Style | Swivel Ring |
