Leviton 1453-2T
1453-2T 3WAY 15A 120V LA AC SW
SKU
702047

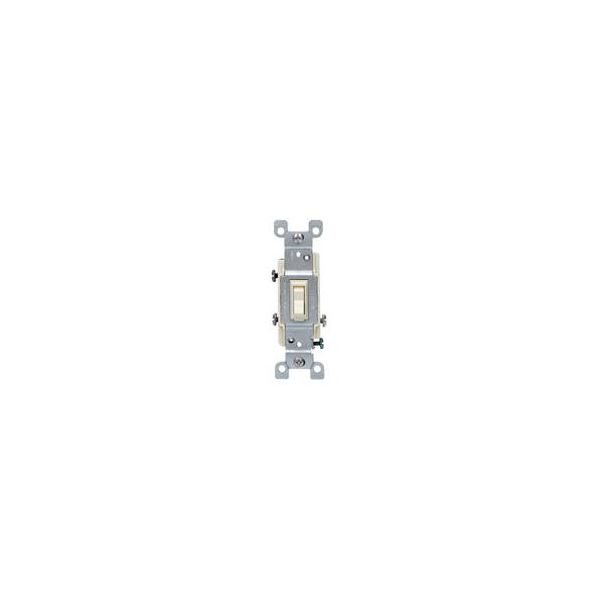

Leviton®, 1453-2T, Toggle Switch, 3-Way Grounding, 120 VAC, 15 A, 1/2, 2 hp Power, 1/2 hp at 120 VAC, 2 hp at 240 VAC Contact, Cam Actuator, Surface Mounting, Side Wire Terminal, Thermoplastic, Light Almond, Environmental Conditions: -40 to 65 deg C Operating Temperature, 4.2 in H x 1.31 in W x 15 in D Dimensions
- Faster installation with combination of side wiring and quick wire push-in wiring
- Large head triple drive combination screws (standard, Phillips and Robertson) for fast wiring installation
- Impact resistant, durable thermoplastic toggle and frame
- Quick wire push-in terminals accept no 14 AWG solid copper wire only
- Terminal screws accept up to #12 AWG copper or copper clad wire
- Durable thermoplastic toggle and frame
- 1/2 hp at 120 VAC, 2 hp at 240 VAC power rating
| Dimensions | 4.2 in H x 1.31 in W x 15 in D |
|---|---|
| Power Rating | 1/2, 2 hp |
| Voltage Rating | 120 VAC |
| Mounting | Surface |
| Environmental Conditions | -40 to 65 deg C Operating Temperature |
| Contact Rating | 1/2 hp at 120 VAC, 2 hp at 240 VAC |
| Color | Light Almond |
| Type | 3-Way Grounding |
| Material | Thermoplastic |
| Terminal Type | Side Wire |
| Amperage Rating | 15 A |
| Actuator | Cam |
| Brand | Leviton Mfg |
| Amperage | 15 Amp |
| Number | 3 Pole |
| Type | Toggle |
| Voltage | 120V |
| Color | Light Almond |
