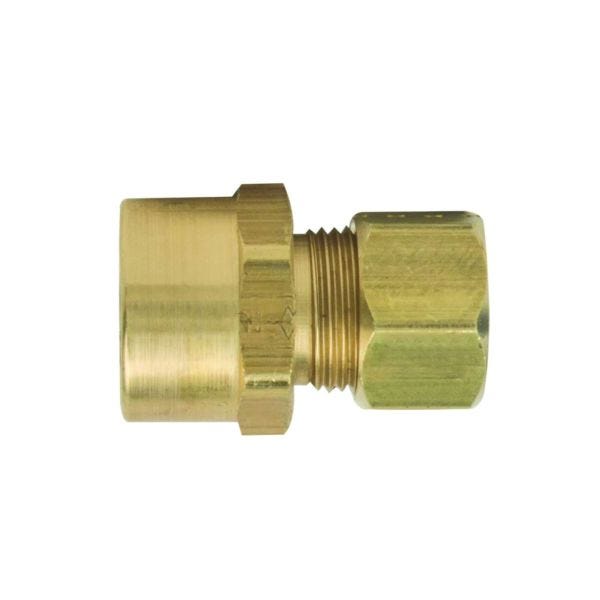

BrassCraft 14X R
LF 3/8OD X 1/2SWT COMP ST ADAP
SKU
1187
BrassCraft® Tube Adapter, Series: 14 Series, Fitting/Connector Type: Adapter, 1/2 x 3/8 in Nominal, C x Compression, 0.032 in Thickness, 3/4 in Hex, 1.08 in Length, 200 psi, -65 to 250 deg F, Brass, Rough, Domestic
- Does not require any flaring, soldering or other type of tubing preparation
- Manufactured from low lead compliant brass
- For use with potable water, many different types of instrumentation applications, hydraulic and pneumatic systems
- Designed to be used with aluminum, copper and plastic tubing, not for use with steel tubing
- Plastic tubing requires 63PT insert and 60PT sleeve
| Temperature Rating | -65 to 250 deg F |
|---|---|
| Finish | Rough |
| Length | 1.08 in |
| End Style | C x Compression |
| Hex Size | 3/4 in |
| Domestic/Import | Domestic |
| Nominal Size | 1/2 x 3/8 in |
| Fitting/Connector Type | Adapter |
| Material | Brass |
| Thickness | 0.032 in |
| Series | 14 Series |
| Pressure Rating | 200 psi |
| Brand | BrassCraft |
| OD Tube Size | 3/8" |
| Type | Comp x Swt Adapters |
